Vehicle Info NeededQA1PART NUMBER: 122-GML4T

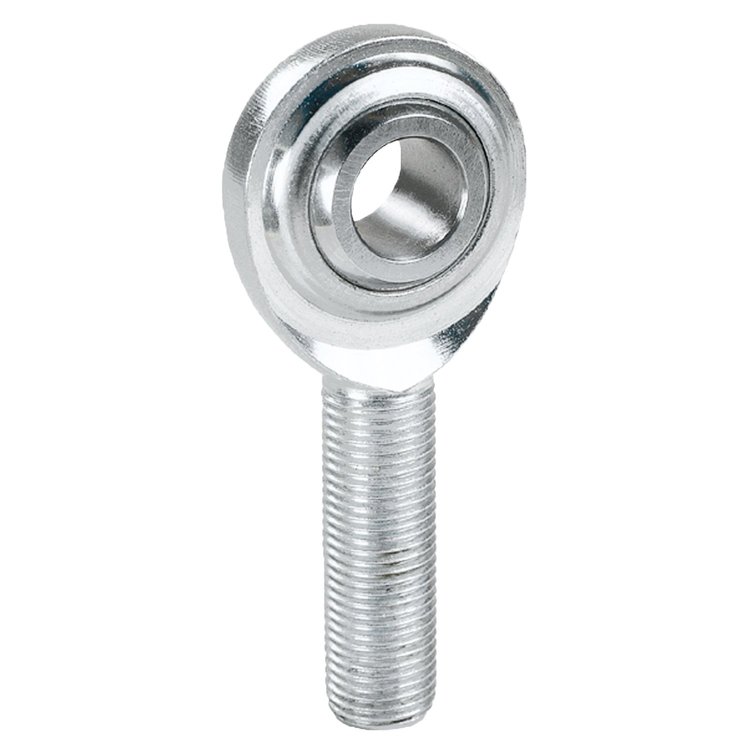

GM-T Series Rod End Hole I.D.: 1/4"
$1199
Ships on 09/09/2026
Lowest Price GuaranteeGM-T Series Rod EndsLeft Hand PTFE Lined
- GM-T Series Rod End
- Hole I.D.: 1/4''
- Thread: 1/4''-28 LH
- Misalign Angle: 27°
- Static Load: 2,165 lbs.
GM-T Male Series Rod Ends
QA1 offers these stainless steel rod ends for applications that may require a little more traditional look to go with the strength. The GM-T Series are self-lubricating rod ends that are not only corrosion resistant but can be polished.
Show More
Ball:
- 440C Stainless Steel
- Heat Treated
- Precision Ground
- Hard Chrome Plated
Body:
- Stainless Steel
- 300 Series Stainless Steel
- PTFE® Lined ("T")
QA1 GM-T Series Stainless Steel Rod Ends are also available with FemaleThreads
Part TypeRod End
Product LineQA1 GM-T Series Male Rod Ends
BrandQA1
Package Height0.37
Package Width0.75
Package Length1.93
Weight0.04 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishNatural
Thread Length1 in (25.4 mm)
Rod End Head Bore Size0.25 in (6.4 mm)
Rod End Thread Size (In.)1/4-28 LH
QuantitySold individually
Rod End Centerline Length1.562 in (39.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)27 degrees
Rod End Head Diameter0.75 in (19.1 mm)
Rod End Ball Width0.375 in (9.5 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.375 in (9.5 mm)
Rod End Static Load Capacity (Lbs.)2,165
Rod End MaterialStainless steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberGML4T
Package Qty1
Package TypeEA
