QA1PART NUMBER: 122-GML5T

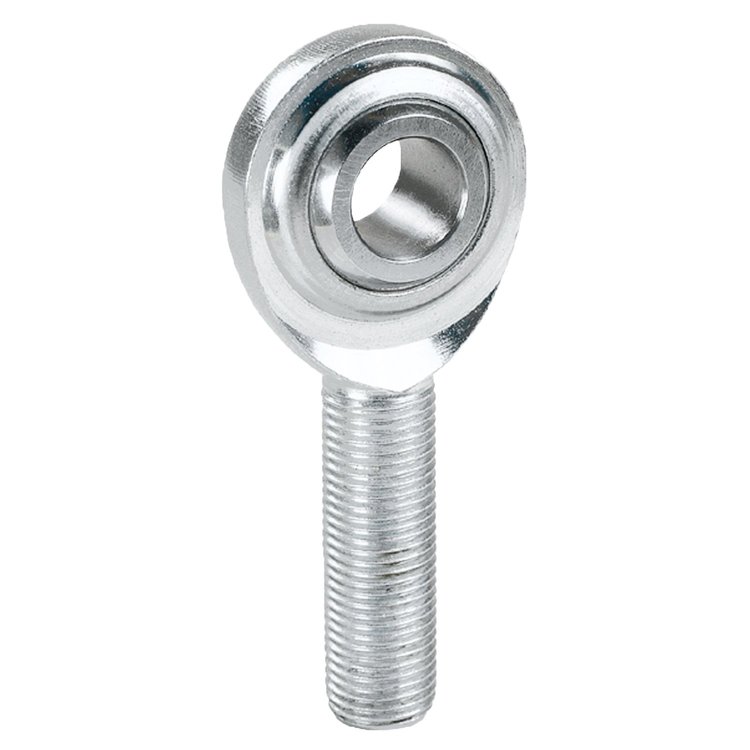

GM-T Series Rod End Hole I.D.: 5/16"

Name: GM-T Series Rod End Hole I.D.: 5/16"
Brand: QA1
SKU: 122-GML5T
Price: 17.99 USD
Availability: InStock

^$17⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

GM-T Series Rod Ends
Left Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height0.3

Package Width1.0

Package Length2.3

Weight0.15 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishNatural

Thread Length1.25 in (31.8 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)5/16-24 LH

QuantitySold individually

Rod End Centerline Length1.875 in (47.6 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)22 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)3,278

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGML5T

Package Qty1

Package TypeEA
