QA1PART NUMBER: 122-GMR4T

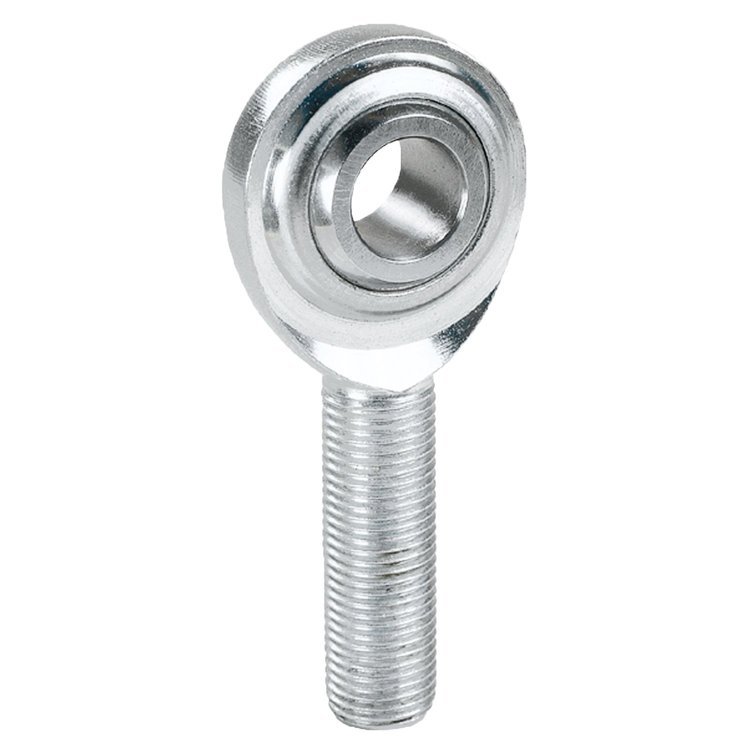

GM-T Series Rod End Hole I.D.: 1/4"

Name: GM-T Series Rod End Hole I.D.: 1/4"
Brand: QA1
SKU: 122-GMR4T
Price: 12.99 USD
Availability: InStock

^$12⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

GM-T Series Rod Ends
Right Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height0.37

Package Width0.75

Package Length1.93

Weight0.04 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishNatural

Thread Length1 in (25.4 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)1/4-28 RH

QuantitySold individually

Rod End Centerline Length1.562 in (39.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)27 degrees

Rod End Head Diameter0.75 in (19.1 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)2,165

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGMR4T

Package Qty1

Package TypeEA
