Vehicle Info NeededQA1PART NUMBER: 122-GMR6T

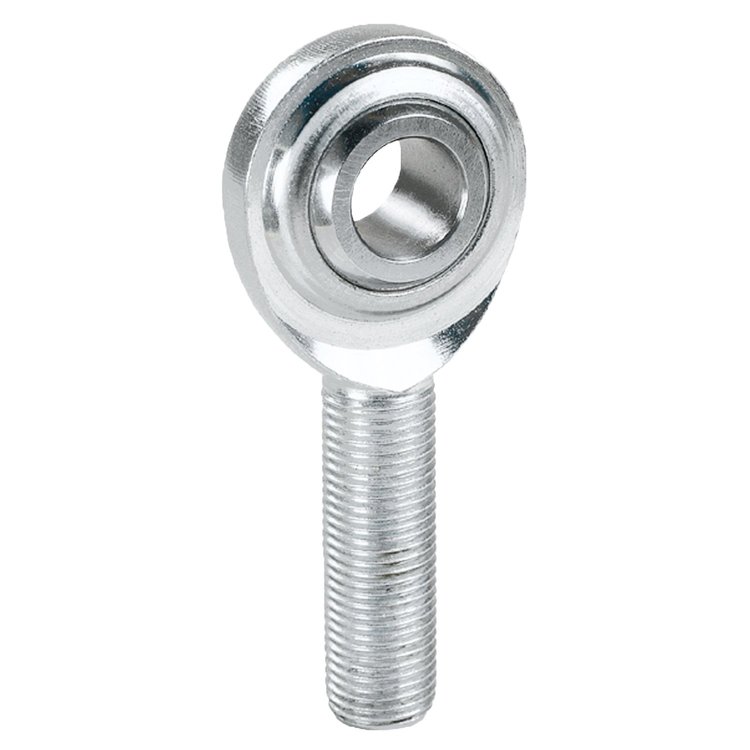

GM-T Series Rod End Hole I.D.: 3/8"
$1699
1 left in stock
Ships Today
Lowest Price GuaranteeGM-T Series Rod EndsRight Hand PTFE Lined
- GM-T Series Rod End
- Hole I.D.: 3/8''
- Thread: 3/8''-24 RH
- Misalign Angle: 22°
- Static Load: 4,527 lbs.
GM-T Male Series Rod Ends
QA1 offers these stainless steel rod ends for applications that may require a little more traditional look to go with the strength. The GM-T Series are self-lubricating rod ends that are not only corrosion resistant but can be polished.
Show More
Ball:
- 440C Stainless Steel
- Heat Treated
- Precision Ground
- Hard Chrome Plated
Body:
- Stainless Steel
- 300 Series Stainless Steel
- PTFE® Lined ("T")
QA1 GM-T Series Stainless Steel Rod Ends are also available with FemaleThreads
Part TypeRod End
Product LineQA1 GM-T Series Male Rod Ends
BrandQA1
Package Height0.5
Package Width2.0
Package Length3.0
Weight0.2 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishNatural
Thread Length1.25 in (31.8 mm)
Rod End Head Bore Size0.375 in (9.5 mm)
Rod End Thread Size (In.)3/8-24 RH
QuantitySold individually
Rod End Centerline Length1.938 in (49.2 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)22 degrees
Rod End Head Diameter1 in (25.4 mm)
Rod End Ball Width0.5 in (12.7 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.5 in (12.7 mm)
Rod End Static Load Capacity (Lbs.)4,527
Rod End MaterialStainless steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberGMR6T
Package Qty1
Package TypeEA
