QA1PART NUMBER: 122-GMR8T

GM-T Series Rod End Hole I.D.: 1/2"

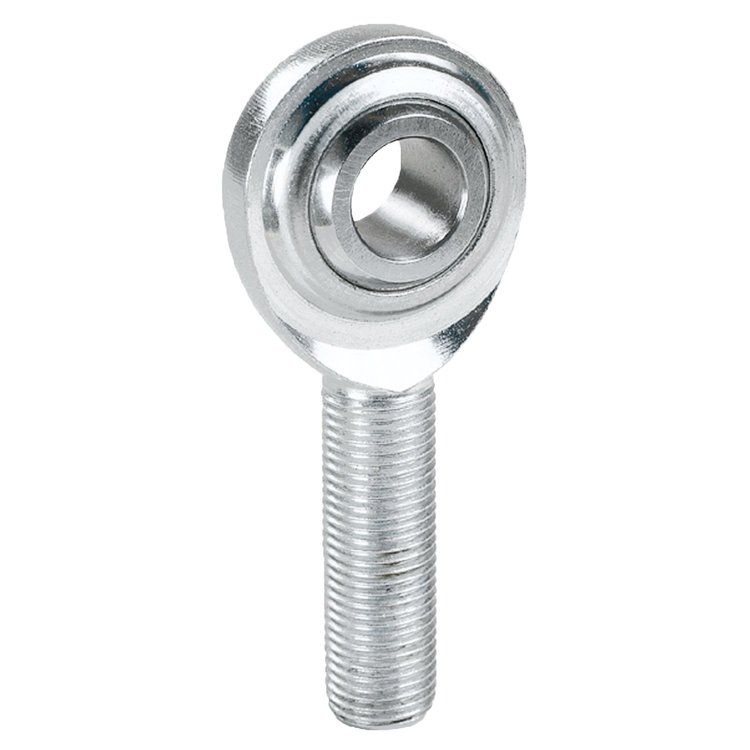

Name: GM-T Series Rod End Hole I.D.: 1/2"
Brand: QA1
SKU: 122-GMR8T
Price: 25.99 USD
Availability: InStock

^$25⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

GM-T Series Rod Ends
Right Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height1.0

Package Width1.0

Package Length3.0

Weight0.23 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishNatural

Thread Length1.5 in (38.1 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)1/2-20 RH

QuantitySold individually

Rod End Centerline Length2.438 in (61.9 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter1.312 in (33.3 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)7,352

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGMR8T

Package Qty1

Package TypeEA
