Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

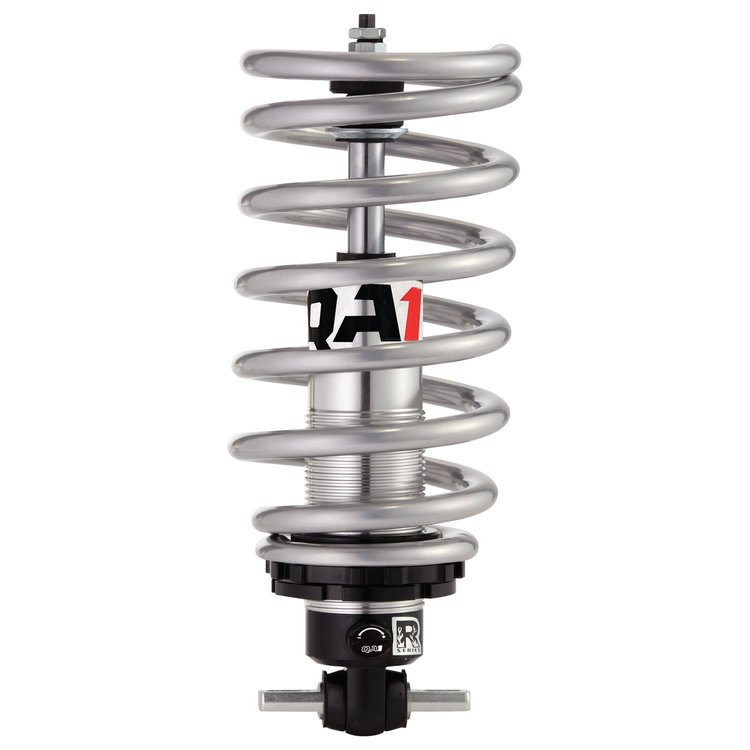

Spring Style ''A''1967-1969 Camaro / Firebird 1968-1974 Nova / Chevy II 1973-1974 Omega
- Pro Coil Front Coil-Over System
- Single Adjustable ''R'' Series Shock
- 9'' Compressed / 12.8'' Extended Shock Height
- 11'' Spring Free Length
- 1601-1700 lbs. Front End Weight
- 300 lbs/in. Spring Rate
Features: - Rebound and Compression adjusted together on one knob with 18 clicks, with stiffer compression valving
- A looser rebound in the front allows weight to transfer to the rear when launching and a firmer compression keeps the front end from slamming back to the ground
- Designed specifically for drag racing front applications
Part TypeCoilover Spring and Shock Assembly
BrandQA1
Package Height8.6
Package Width11.5
Package Length25.1
Weight20.26 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Number Of Valving Selections18
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Suspension Height Adjustment (In.)0.0-2.0 lowered front
Lower MountTie bar
Shock Body FinishClear anodized
Shock Body MaterialAluminum
Body Diameter2 in (50.8 mm)
Extended Length12.8 in (325.12 mm)
Coil-Over Springs IncludedYes
Spring Rate300 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Recommended Front-End Weight1,601-1,700 lbs
Spring FinishSilver powdercoated
Welding RequiredNo
QuantitySold as a kit
Coil-Over Kit PositionFront
Upper MountStud
Shocks IncludedYes
Threaded Adjustment Range4.5 in (114.3 mm)
Part FitmentSemi Universal
Collapsed Length9 in (228.6 mm)
Vendor Part NumberGR401-11300A
Package Qty1
Package TypeEA
