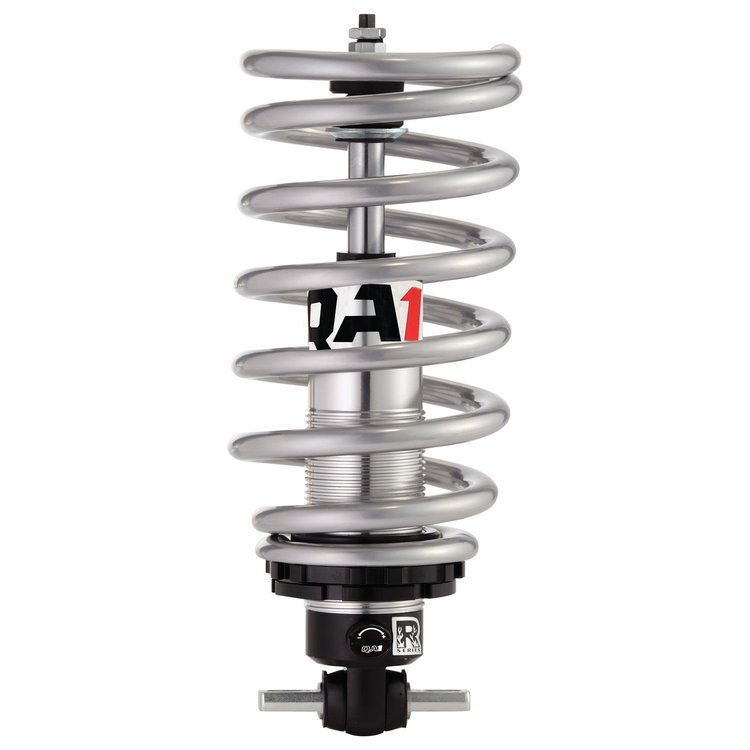

Pro Coil Front Coil-Over System Single Adjustable " R" Series Shock
Product Discontinued
QA1PART NUMBER: 122-GR501-10450A

Pro Coil Front Coil-Over System Single Adjustable " R" Series Shock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Spring Style ''A''
  • 1955-1957 Chevy Car
  • 1964-1967 Chevelle / Malibu / El Camino
  • 1964-1967 Skylark (including GS)
  • 1964-1967 Cutlass / 442 / F85
  • 1964-1967 GTO / Cutlass / LeMans
      • Pro Coil Front Coil-Over System
    • Single Adjustable ''R'' Series Shock
    • 10.5'' Compressed / 15'' Extended Shock Height
    • 10'' Spring Free Length
    • 1901-2000 lbs. Front End Weight
    • 450 lbs/in. Spring Rate

      Features:
    • Rebound and Compression adjusted together on one knob with 18 clicks, with stiffer compression valving
    • A looser rebound in the front allows weight to transfer to the rear when launching and a firmer compression keeps the front end from slamming back to the ground
    • Designed specifically for drag racing front applications
    Part TypeCoilover Spring and Shock Assembly
    BrandQA1
    Package Height6.0
    Package Width10.0
    Package Length25.0
    Weight23.15 PG
    Part CategoryPerformance Parts
    Adjustable ValvingYes
    Hardware IncludedYes
    Number Of Valving Selections18
    Gas ChargedNo
    Crossmember IncludedNo
    Bushing ColorBlack
    Suspension Height Adjustment (In.)0.0-2.0 lowered front
    Lower MountEyelet
    Shock Body FinishPolished
    Shock Body MaterialAluminum
    Extended Length17 in (431.8 mm)
    Recommended Total Vehicle Weight2,950-3,900
    Coil-Over Springs IncludedYes
    Spring Rate450 lbs./in.
    Bushing MaterialPolyurethane
    Adjustable Mounting Bracket IncludedNo
    Spring FinishSilver powdercoated
    Welding RequiredNo
    QuantitySold as a kit
    Coil-Over Kit PositionFront
    Upper MountStud
    Shocks IncludedYes
    Part FitmentSemi Universal
    Collapsed Length11.63 in (295.402 mm)
    Internal DesignTwin-tube
    Vendor Part NumberGR501-10450A
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
