Made in USA

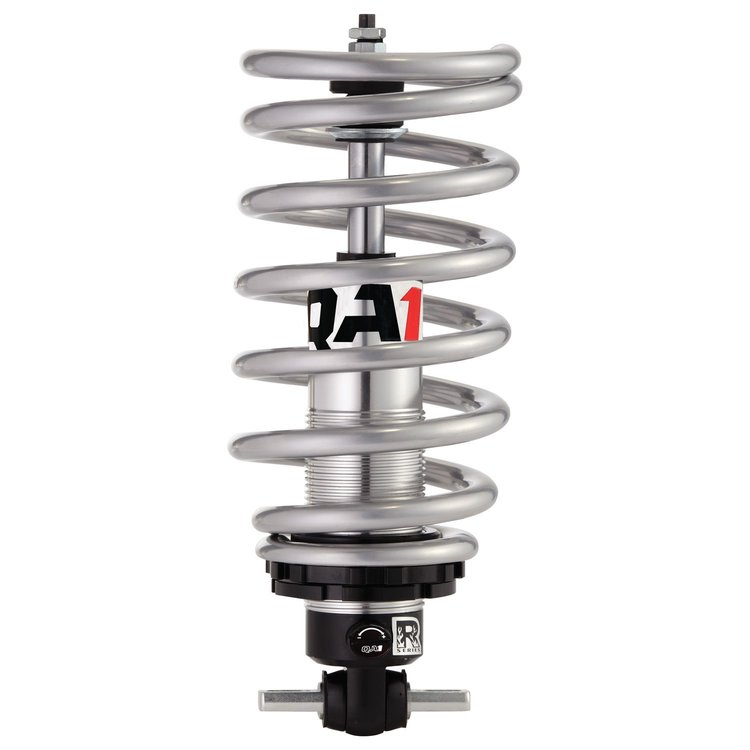

Pro Coil Front Coil-Over System Single Adjustable " R" Series Shock
Product Discontinued
QA1PART NUMBER: 122-GR501-10550A

Pro Coil Front Coil-Over System Single Adjustable " R" Series Shock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Spring Style ''A''
  • 1955-1957 Chevy Car
  • 1964-1967 Chevelle / Malibu / El Camino
  • 1964-1967 Skylark (including GS)
  • 1964-1967 Cutlass / 442 / F85
  • 1964-1967 GTO / Cutlass / LeMans
      • Pro Coil Front Coil-Over System
    • Single Adjustable ''R'' Series Shock
    • 10.5'' Compressed / 15'' Extended Shock Height
    • 10'' Spring Free Length
    • 2101-2300 lbs. Front End Weight
    • 550 lbs/in. Spring Rate

      Features:
    • Rebound and Compression adjusted together on one knob with 18 clicks, with stiffer compression valving
    • A looser rebound in the front allows weight to transfer to the rear when launching and a firmer compression keeps the front end from slamming back to the ground
    • Designed specifically for drag racing front applications
    Part TypeCoilover Spring and Shock Assembly
    BrandQA1
    Package Height6.0
    Package Width10.0
    Package Length25.0
    Weight24.36 PG
    Part CategoryPerformance Parts
    Adjustable ValvingYes
    Hardware IncludedYes
    Coil-Over Springs IncludedYes
    Number Of Valving Selections18
    Gas ChargedNo
    Crossmember IncludedNo
    Bushing ColorBlack
    Spring Rate550 lbs./in.
    Bushing MaterialRubber
    Adjustable Mounting Bracket IncludedNo
    Recommended Front-End Weight (Lbs.)2,101-2,300
    Welding RequiredNo
    QuantitySold as a kit
    Lower MountBar pin
    Shock Body FinishClear anodized
    Coil-Over Kit PositionFront
    Upper MountStud
    Shock Body MaterialAluminum
    Shocks IncludedYes
    Part FitmentSemi Universal
    Vendor Part NumberGR501-10550A
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
