Vehicle Info NeededQA1PART NUMBER: 122-GS501-10550A

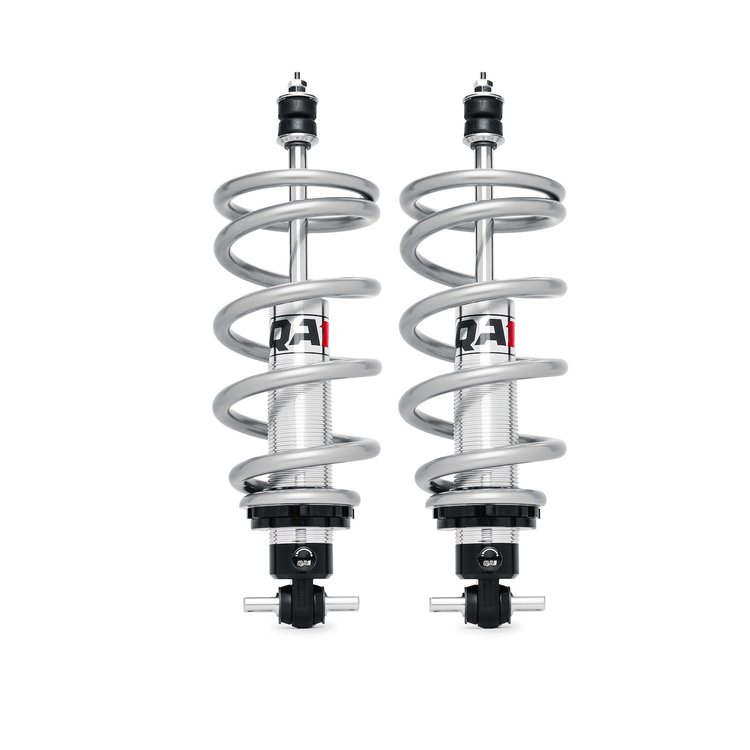

Pro Coil Front Coil-Over System Single Adjustable Shock
$74995
1 left in stock
Ships Today
Lowest Price GuaranteeSpring Style ''A''1955-1957 Chevy Car 1964-1967 Chevelle / Malibu / El Camino 1964-1967 Skylark (including GS) 1964-1967 Cutlass / 442 / F85 1964-1967 GTO / Cutlass / LeMans
- Pro Coil Front Coil-Over System
- Single Adjustable Shock
- 10.5'' Compressed / 15'' Extended Shock Height
- 10'' Spring Free Length
- 2101-2300 lbs. Front End Weight
- 550 lbs/in. Spring Rate
Features: - Simultaneous compression and rebound adjustment on one knob
- 18 valving options
- Perfect for comfortable street driving or the firm handling of a more modern sports carShock Mount Type:
- Stud Type Upper Mount
- T-Bar Type Lower Mount
*Notes: Some front applications may require the lower a-arm to be dropped for installation. Body diameter may be too large to allow mounting from the bottom. Some control arm's shock openings may need to be enlarged to accept a QA1 shock.
Stud mounts are measured to the shoulder of the stud. Add 13/16' for installed compressed length per stud mount. Loops and t-bars are measured to the center of the loop. Lengths may vary slightly.
Part TypeCoilover Spring and Shock Assembly
BrandQA1
Package Height8.4
Package Width10.1
Package Length21.4
Weight23.26 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Coil-Over Springs IncludedYes
Number Of Valving Selections18
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Spring Rate550 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Spring FinishSilver powdercoated
Recommended Front-End Weight (Lbs.)2,101-2,300
Welding RequiredNo
QuantitySold as a kit
Shock Body FinishClear anodized
Coil-Over Kit PositionFront
Shock Body MaterialAluminum
Suspension Height AdjustmentStock
Shocks IncludedYes
Part FitmentSemi Universal
Internal DesignTwin-tube
Vendor Part NumberGS501-10550A
Package Qty1
Package TypeEA
