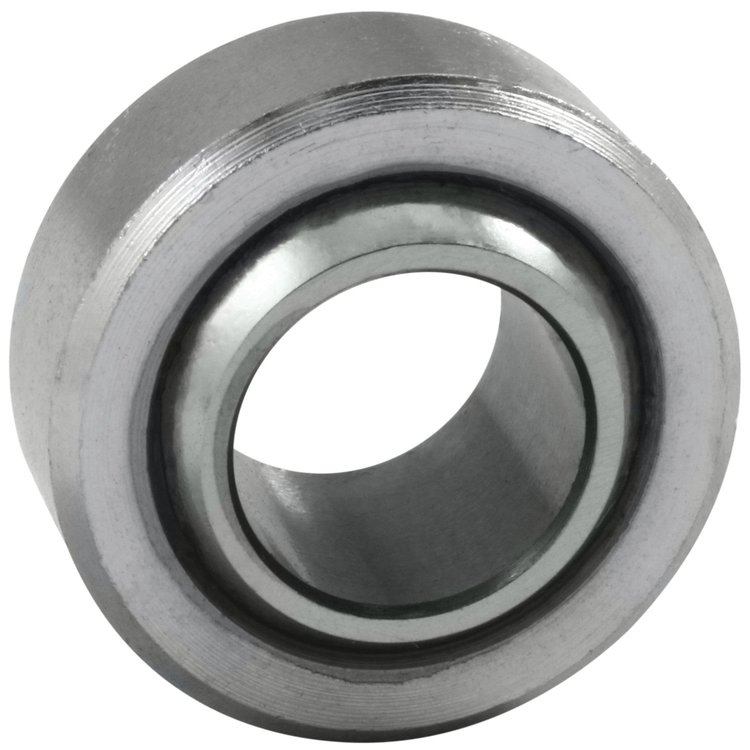

BEARING (HCOM) 52100 HT CP/ CARB HT ZP 1 3/16 TEF

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

For those special applications, QA1?s HCOM and HCOM-T Large Bore Series spherical bearings are a great solution. With bore sizes from one to two inches, these spherical bearings are ideal for large applications. Each bearing is made from chromoly steel with an optional self-lubricating PTFE liner.` For those special applications, QA1?s HCOM and HCOM-T Large Bore Series spherical bearings are a gre

Part TypeSuspension Bearing

BrandQA1

Package Height1.18

Package Width2.37

Package Length2.37

Weight0.9 PG

Part CategoryPerformance Parts

Ult. Static Radial Load (Lbs.)151,095

Race Width0.937 in (23.8 mm)

Receiver Race Diameter2.375 in (60.3 mm)

Rod End Bearing MaterialSteel

QuantitySold individually

Inner Ball Diameter1.188 in (30.175 mm)

Rod End Ball Diameter2 in (50.8 mm)

Chamfer Reference0.032 in (0.813 mm)

Part FitmentSemi Universal

Rod End Misalign Angle (Deg)8.5 degrees

Inner Ball Width1.187 in (30.15 mm)

Vendor Part NumberHCOM19T

Package Qty1

Package TypeEA
