Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

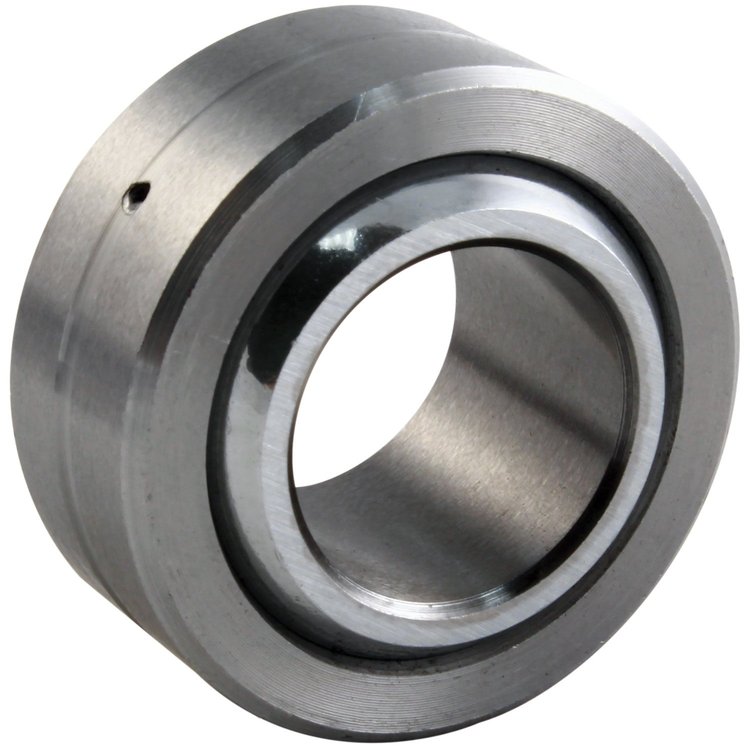

HCOM Series BearingBearing (Hcom) 52100 Ht Cp/ Carbon Ht 1 1/4
QA1 HCOM20 Features:
For those special applications, QA1's HCOM and HCOM-T Large Bore Series spherical bearings are a great solution. With bore sizes from one to two inches, these spherical bearings are ideal for large applications. Each bearing is made from chromoly steel with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (HCOM-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height1.18
Package Width2.37
Package Length2.37
Weight0.9 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)151,095
Race Width0.937 in (23.8 mm)
Receiver Race Diameter2.375 in (60.3 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter1.25 in (31.75 mm)
Rod End Ball Diameter2 in (50.8 mm)
Chamfer Reference0.032 in (0.813 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)8.5 degrees
Inner Ball Width1.187 in (30.15 mm)
Vendor Part NumberHCOM20
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
