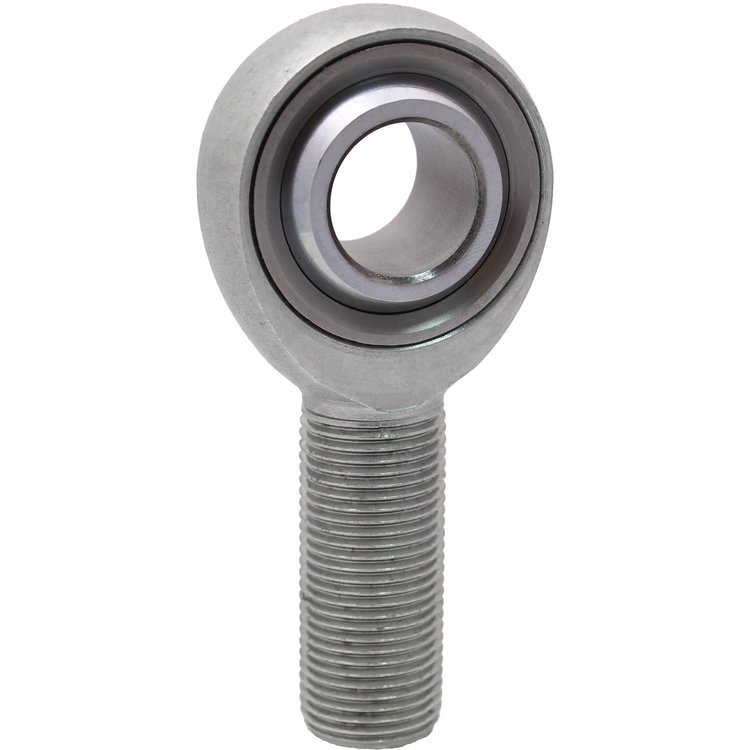

HM Series Rod EndsLeft Hand
HM Series Rod End Hole I.D.: .875 in. Thread Size: 7/8-14 LH Thread Length: 2.000 in.
- QA1's HM Series male rod ends are a traditional three-piece Chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground.
HM Male Series Rod Ends
For a traditional Chromoly steel three-piece rod end, QA1 offers quality HM Chromoly Steel Series rod ends. These metal to metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to complete your project correctly.
Show More
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Body
- Chromoly Steel
- Protective Coated for Corrosion and Wear Resistance
Part TypeRod End
Product LineQA1 HM Series Rod Ends
BrandQA1
Package Height0.87
Package Width2.0
Package Length4.37
Weight0.91 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.375 in (34.9 mm)
Rod End Head Bore Size0.875 in (22.2 mm)
Rod End Thread Size (In.)7/8-14 LH
QuantitySold individually
Rod End Centerline Length3.375 in (85.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)7 degrees
Rod End Head Diameter2 in (50.8 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)45,051
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberHML14
Package Qty1
Package TypeEA
