HM Series Rod EndsLeft Hand

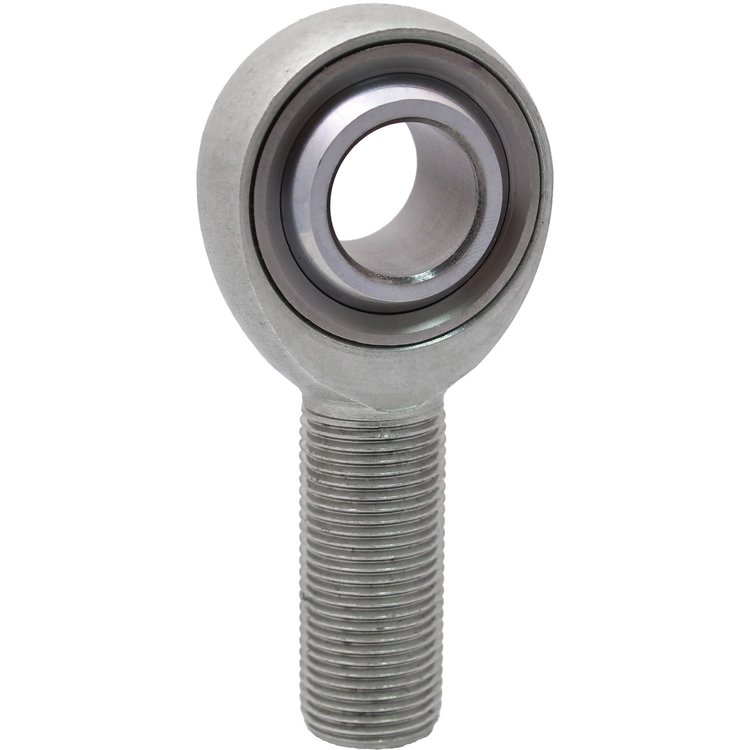

HM Series Rod End Hole I.D.: .250 in. Thread Size: 1/4-28 LH Thread Length: 1.000 in.
- QA1's HM Series male rod ends are a traditional three-piece Chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground.
Part TypeRod End
BrandQA1
Package Height0.37
Package Width0.75
Package Length1.93
Weight0.04 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1 in (25.4 mm)
Rod End Head Bore Size0.25 in (6.4 mm)
Rod End Thread Size (In.)1/4-28 LH
QuantitySold individually
Rod End Centerline Length1.562 in (39.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)16 degrees
Rod End Head Diameter0.75 in (19.1 mm)
Rod End Ball Width0.375 in (9.5 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.375 in (9.5 mm)
Rod End Static Load Capacity (Lbs.)5,260
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberHML4
Package Qty1
Package TypeEA
