Vehicle Info NeededQA1PART NUMBER: 122-HML6

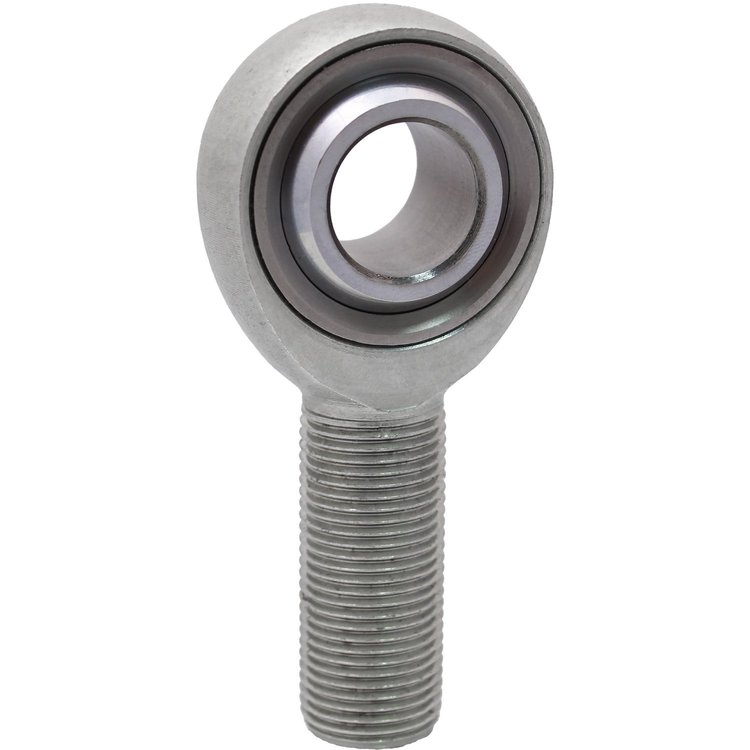

HM Series Rod End Hole I.D.: .375 in.
$1299
Ships on 09/09/2026
Lowest Price GuaranteeHM Series Rod EndsLeft Hand
HM Series Rod End Hole I.D.: .375 in. Thread Size: 3/8-24 LH Thread Length: 1.250 in.
- QA1's HM Series male rod ends are a traditional three-piece Chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground.
Part TypeRod End
BrandQA1
Package Height2.6
Package Width3.5
Package Length4.6
Weight0.3 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.25 in (31.8 mm)
Rod End Head Bore Size0.375 in (9.5 mm)
Rod End Thread Size (In.)3/8-24 LH
QuantitySold individually
Rod End Centerline Length1.938 in (49.2 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1 in (25.4 mm)
Rod End Ball Width0.5 in (12.7 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.5 in (12.7 mm)
Rod End Static Load Capacity (Lbs.)9,544
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberHML6
Package Qty1
Package TypeEA
