Vehicle Info NeededQA1PART NUMBER: 122-HML7-8
HM Series Rod End Hole I.D.: .4375 in.
$2299
Ships on 09/09/2026
Lowest Price GuaranteeHM Series Rod EndsLeft Hand

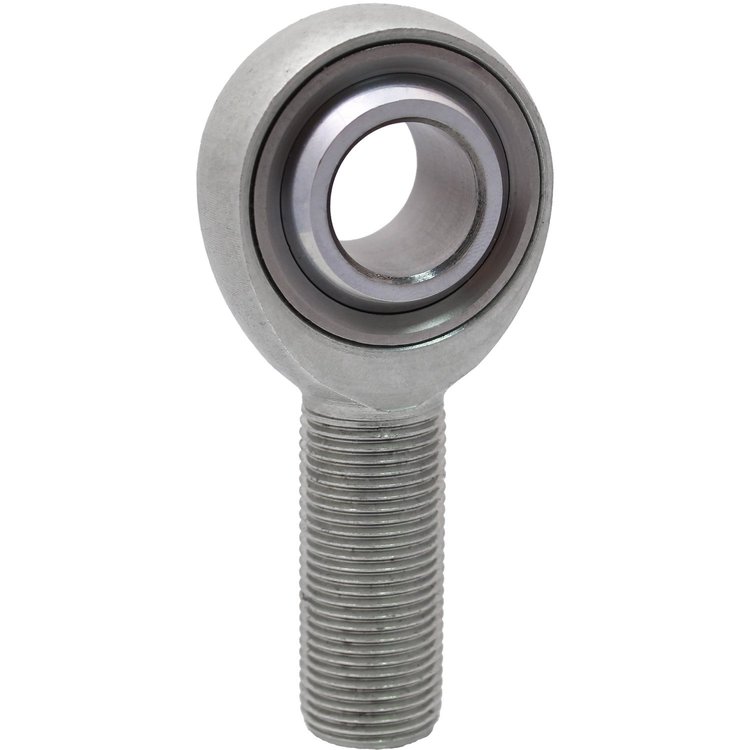

HM Series Rod End Hole I.D.: .4375 in. Thread Size: 1/2-20 LH Thread Length: 1.500 in.
- QA1's HM Series male rod ends are a traditional three-piece Chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground.
HM Male Series Rod Ends
For a traditional Chromoly steel three-piece rod end, QA1 offers quality HM Chromoly Steel Series rod ends. These metal to metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to complete your project correctly.
Show More
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Body
- Chromoly Steel
- Protective Coated for Corrosion and Wear Resistance
Part TypeRod End
Product LineQA1 HM Series Rod Ends
BrandQA1
Package Height0.56
Package Width1.31
Package Length3.09
Weight0.25 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)23,452
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberHML7-8
Package Qty1
Package TypeEA
