Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
HM Series Rod EndsLeft Hand

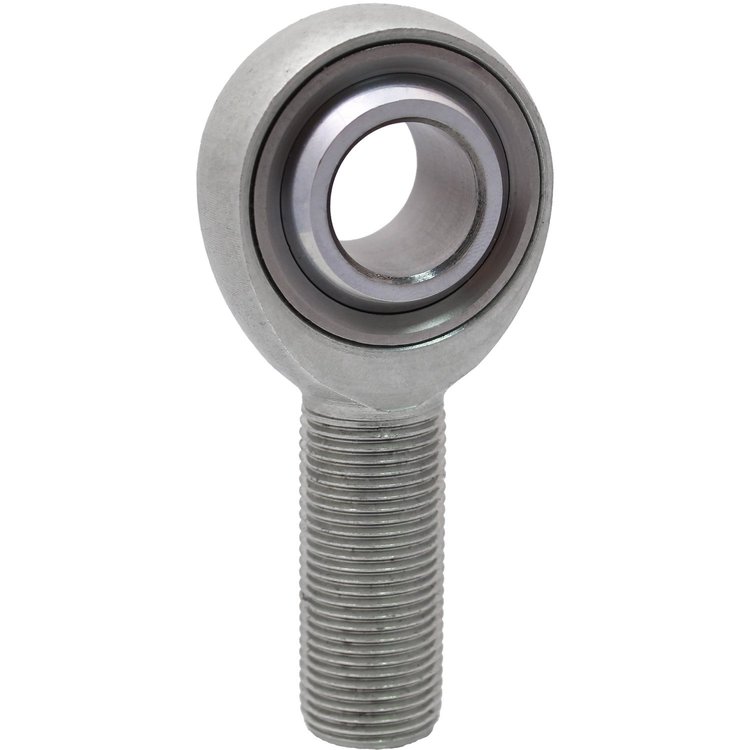

HM Series Rod End Hole I.D.: .500 in. Thread Size: 1/2-20 LH Thread Length: 1.500 in.
- QA1's HM Series male rod ends are a traditional three-piece Chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground.
Part TypeRod End
BrandQA1
Package Height0.62
Package Width1.31
Package Length3.09
Weight0.25 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)16,238
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberHML8
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
