Vehicle Info NeededQA1PART NUMBER: 122-HML8T

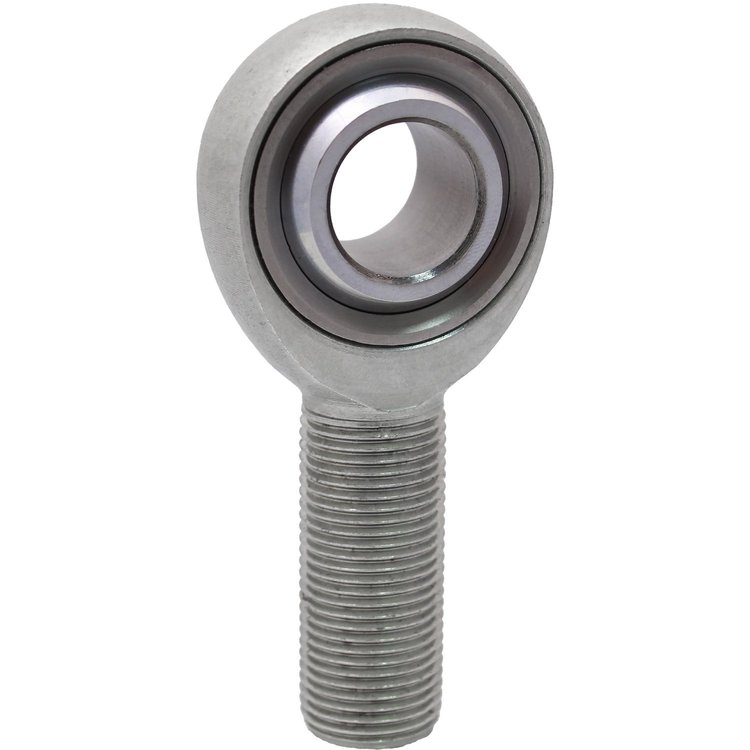

HML8T H Series Rod End, Rod End (H) 3-Pc Alloy Ht M-L 1/2-1/2 PTFE
$2399
Ships Tomorrow
Lowest Price GuaranteeH Series Rod EndRod End (H) 3-Pc Alloy Ht M-L 1/2-1/2 PTFE
QA1 HML8T Features:
QA1's HM Series rod ends are a traditional three-piece chromoly steel male rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Chromoly Heat Treated Steel, Corrosion and Wear Resistant, , BODY, Chromoly Steel, Heat Treated, Protective Coated for Corrosion Resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.62
Package Width1.31
Package Length3.09
Weight0.25 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)16,238
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentSemi Universal
Vendor Part NumberHML8T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
