Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

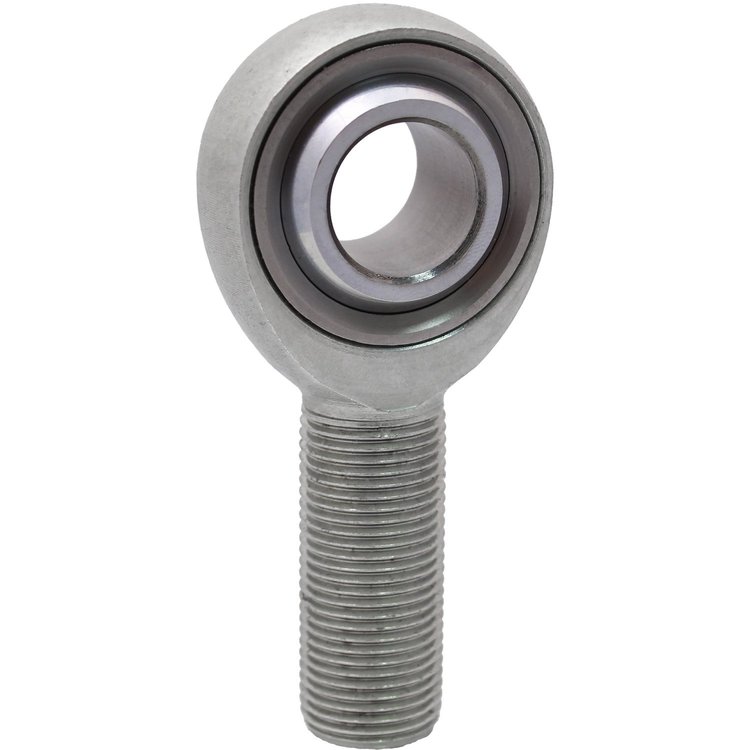

HM Series Rod EndsRight Hand
HM Series Rod End Hole I.D.: .625 in. Thread Size: 5/8-18 RH Thread Length: 1.750 in.
- QA1's HM Series male rod ends are a traditional three-piece Chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground.
Part TypeRod End
BrandQA1
Package Height1.0
Package Width1.0
Package Length2.0
Weight0.55 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 RH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)16 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)40,572
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberHMR10H
Package Qty1
Package TypeEA
