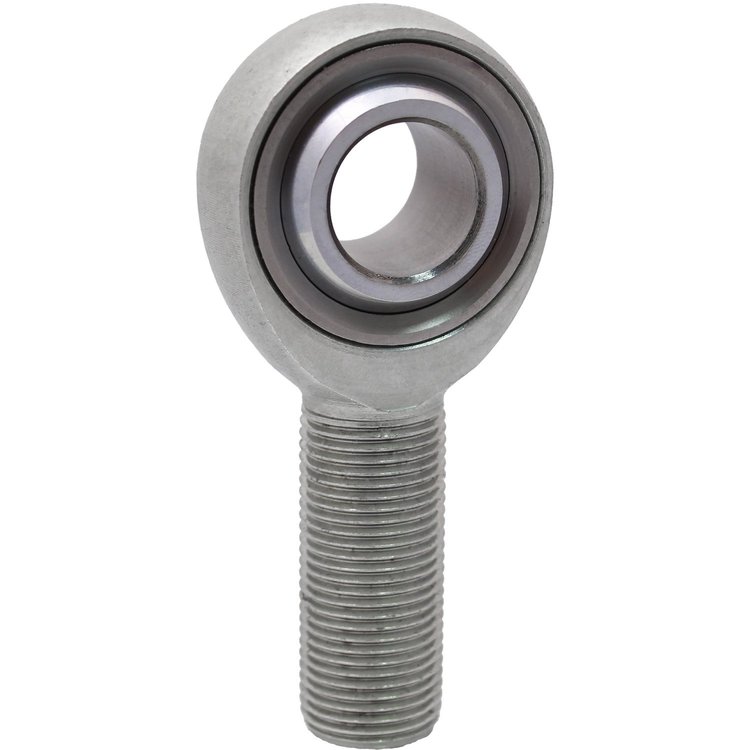

ROD END (H) 3-PC ALLOY HTM-R 1/2-1/2 HEAVY TEF

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

QA1's HM Series male rod ends are a traditional three-piece chromoly steel rod end. These precision rod ends are heat treated, are available in right and left hand threads and in metric and inch dimensions. Grease fittings and stud configurations are available. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is chromoly heat t

Part TypeRod End

BrandQA1

Package Height0.62

Package Width1.5

Package Length3.37

Weight0.34 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.625 in (41.3 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)1/2-20 RH

QuantitySold individually

Rod End Centerline Length2.625 in (66.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)12 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction3-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)31,390

Rod End MaterialChromoly

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberHMR8HT

Package Qty1

Package TypeEA
