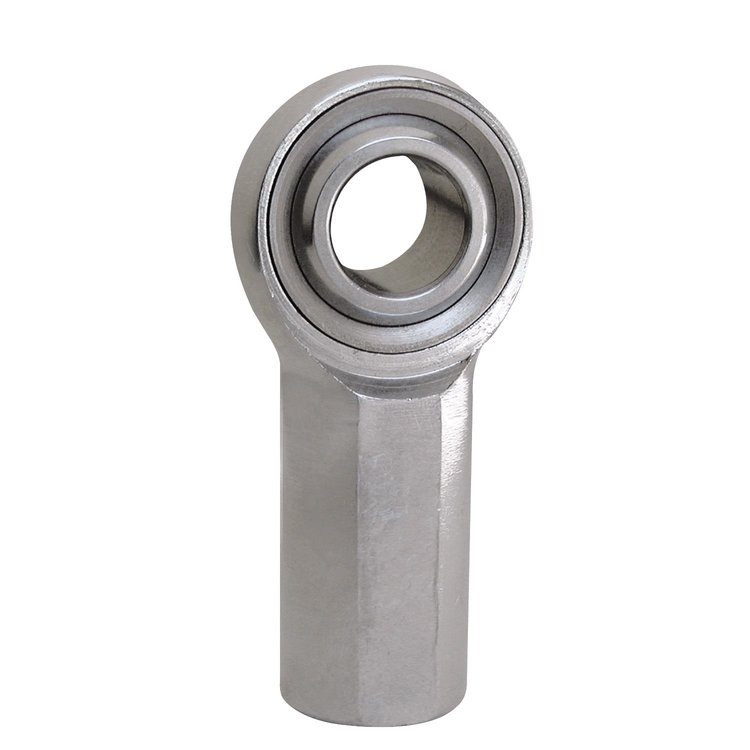

3/8-24 ROD END LEFT

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

K Series three piece alloy steel rod end. Female mounting with 3/8" bore and 3/8-24 left hand threads.
The traditional three-piece carbon steel female rod end is defined as QA1?s KF Series rod ends. Available in right and left hand threads and in inch dimensions, these truly are precision rod ends.` The traditional three-piece carbon steel female rod end is defined as QA1's KF Series rod ends. Available in right and left hand threads and in inch dimensions, these truly are precision rod ends. The b

Part TypeRod End

BrandQA1

Package Height0.6

Package Width1.0

Package Length1.7

Weight0.15 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length0.937 in (23.8 mm)

Rod End Head Bore Size0.375 in (9.5 mm)

Rod End Thread Size (In.)3/8-24 LH

QuantitySold individually

Rod End Centerline Length1.625 in (41.3 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)12 degrees

Rod End Head Diameter1 in (25.4 mm)

Rod End Ball Width0.5 in (12.7 mm)

Grease FittingNo

Rod End Construction3-piece

Heat-TreatedYes

Rod End Head Width0.5 in (12.7 mm)

Rod End Static Load Capacity (Lbs.)3,915

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberKFL6

Package Qty1

Package TypeEA
