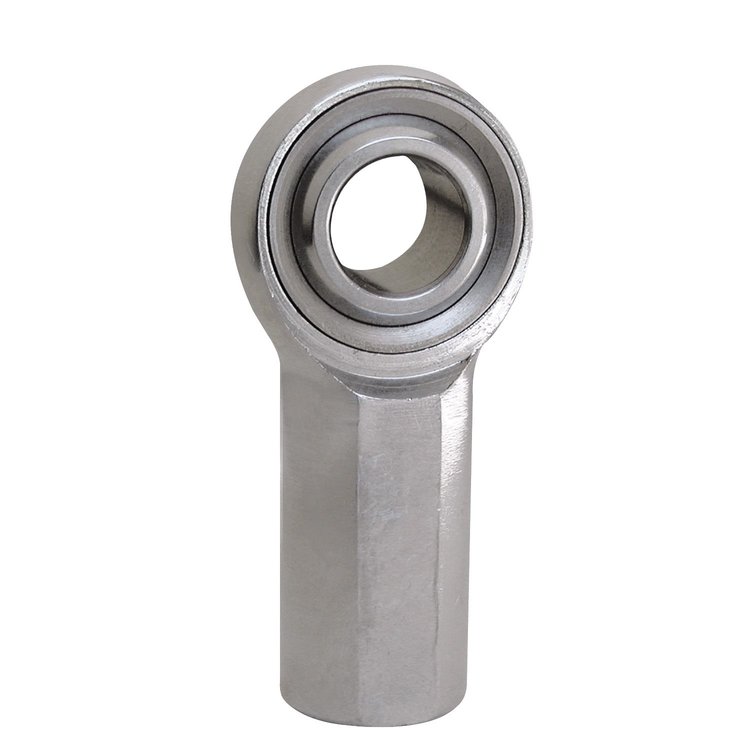

Lowest Price Guarantee- K Series three piece alloy steel rod end. Includes PTFE race lining. Female mounting with 7/16" bore and 7/16-20 right hand threads.
- Add a PTFE liner to the traditional three-piece carbon steel female rod end and you have QA1?s KF-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.` Add a PTFE liner to the traditional three-piece carbon steel female rod end and you have QA1's KF-T Carbon Steel Series rod ends. Available in right and left hand threads
Part TypeRod End
BrandQA1
Package Height1.0
Package Width2.0
Package Length2.0
Weight0.2 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length1.062 in (27 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)7/16-20 RH
QuantitySold individually
Rod End Centerline Length1.812 in (46 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)14 degrees
Rod End Head Diameter1.125 in (28.6 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)4,218
Rod End MaterialCarbon steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberKFR7T
Package Qty1
Package TypeEA
