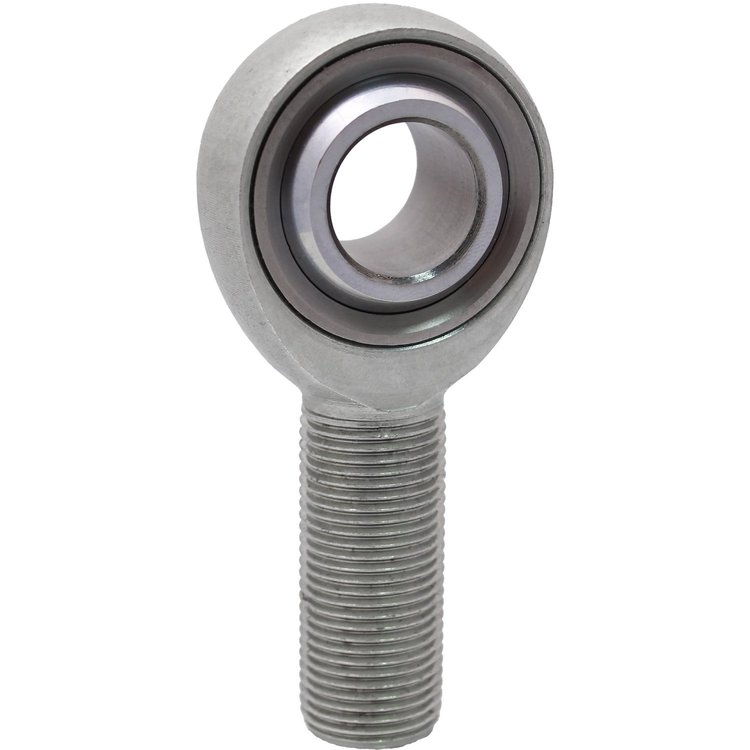

3-Piece Rod End Hole ID: 3/4"

Name: 3-Piece Rod End Hole ID: 3/4"
Brand: QA1
SKU: 122-KML12
Price: 23.53 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Standard Duty 3-Piece Rod Ends

Part TypeRod End

BrandQA1

Package Height0.8

Package Width1.7

Package Length3.7

Weight0.6 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.75 in (44.5 mm)

Rod End Head Bore Size0.75 in (19.1 mm)

Rod End Thread Size (In.)3/4-16 LH

QuantitySold individually

Rod End Centerline Length2.875 in (73 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)14 degrees

Rod End Head Diameter1.75 in (44.5 mm)

Rod End Ball Width0.875 in (22.2 mm)

Grease FittingNo

Rod End Construction3-piece

Heat-TreatedYes

Rod End Head Width0.875 in (22.2 mm)

Rod End Static Load Capacity (Lbs.)11,518

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberKML12

Package Qty1

Package TypeEA
