Vehicle Info NeededQA1PART NUMBER: 122-KML14

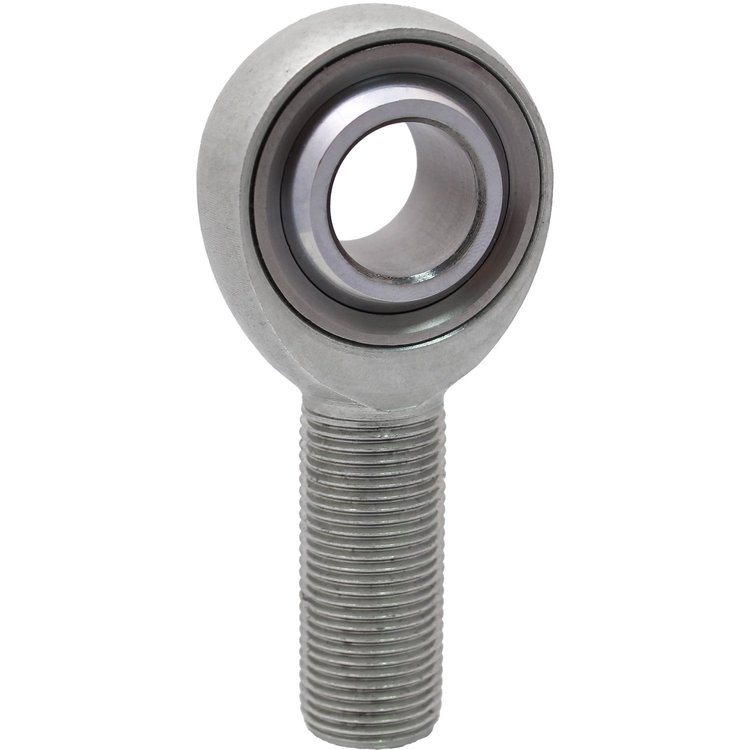

KML14 K Series Rod End, Rod End (K) 3-Pc Carbon M-L 7/8-7/8
$3099
Ships on 09/21/2026
Lowest Price GuaranteeK Series Rod EndRod End (K) 3-Pc Carbon M-L 7/8-7/8
QA1 KML14 Features:
The traditional three-piece carbon steel rod end is defined as QA1's KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Grease fittings and stud configurations are available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Alloy Steel, Corrosion and Wear Resistant, , BODY, Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.87
Package Width2.0
Package Length4.37
Weight0.91 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.375 in (34.9 mm)
Rod End Head Bore Size0.875 in (22.2 mm)
Rod End Thread Size (In.)7/8-14 LH
QuantitySold individually
Rod End Centerline Length3.375 in (85.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)7 degrees
Rod End Head Diameter2 in (50.8 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)18,476
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentSemi Universal
Vendor Part NumberKML14
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
