Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

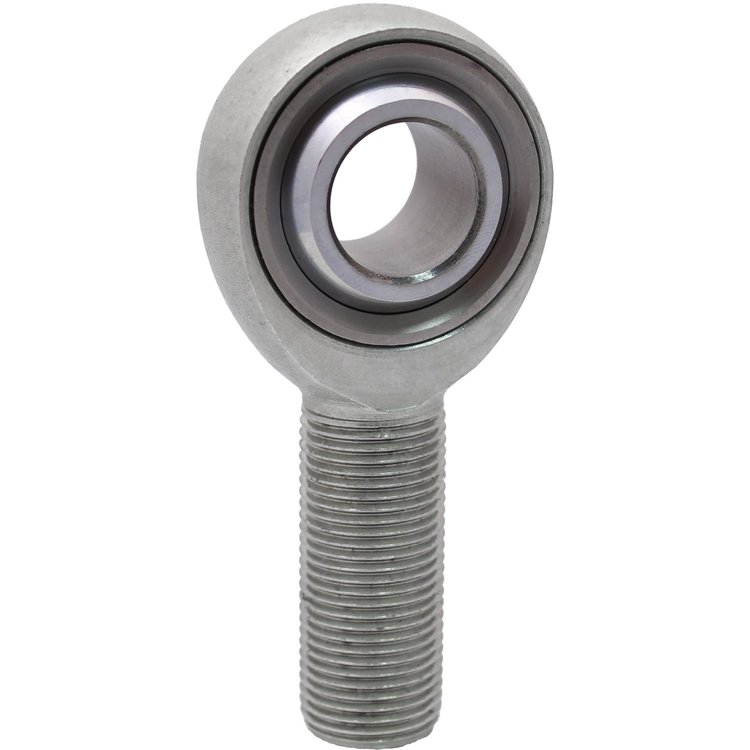

K Series Rod EndRod End (K) 3-Pc Carbon M-L 3/16-3/16
QA1 KML3 Features:
The traditional three-piece carbon steel rod end is defined as QA1's KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Grease fittings and stud configurations are available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Alloy Steel, Corrosion and Wear Resistant, , BODY, Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.31
Package Width0.62
Package Length1.56
Weight0.03 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Rod End Thread Size10-32 LH NF
Thread Length0.75 in (19.1 mm)
Rod End Head Bore Size0.19 in (4.8 mm)
QuantitySold individually
Rod End Centerline Length1.25 in (31.8 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)13 degrees
Rod End Head Diameter0.625 in (15.9 mm)
Rod End Ball Width0.312 in (7.9 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.312 in (7.9 mm)
Rod End Static Load Capacity (Lbs.)1,169
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentSemi Universal
Vendor Part NumberKML3
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
