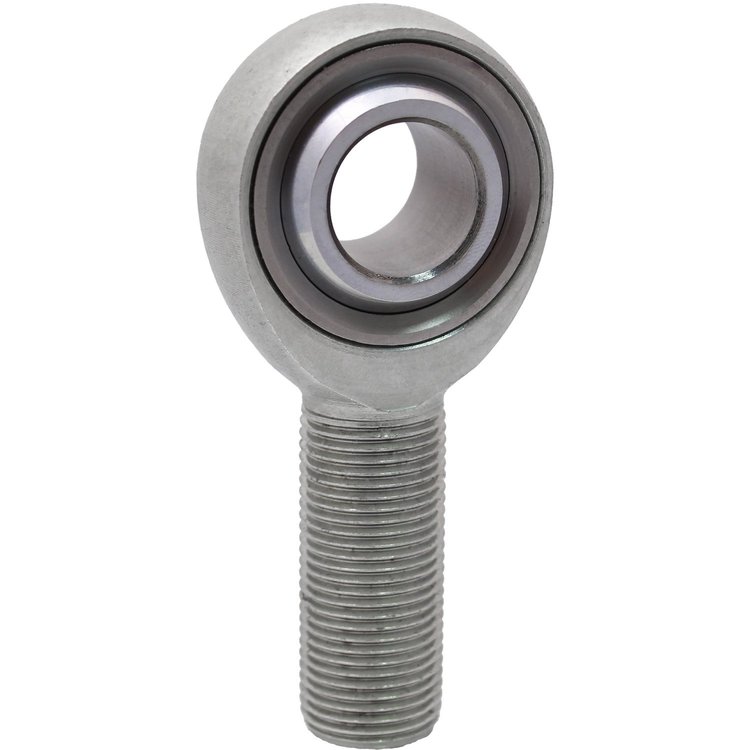

ROD END (K) 3-PC CARBM-L 1/4-5/16 TEF

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1?s KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.` Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimen

Part TypeRod End

BrandQA1

Package Height0.37

Package Width0.87

Package Length2.31

Weight0.07 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.25 in (31.8 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)5/16-24 LH

QuantitySold individually

Rod End Centerline Length1.875 in (47.6 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)13 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction3-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)3,467

Rod End MaterialCarbon steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberKML4-5T

Package Qty1

Package TypeEA
