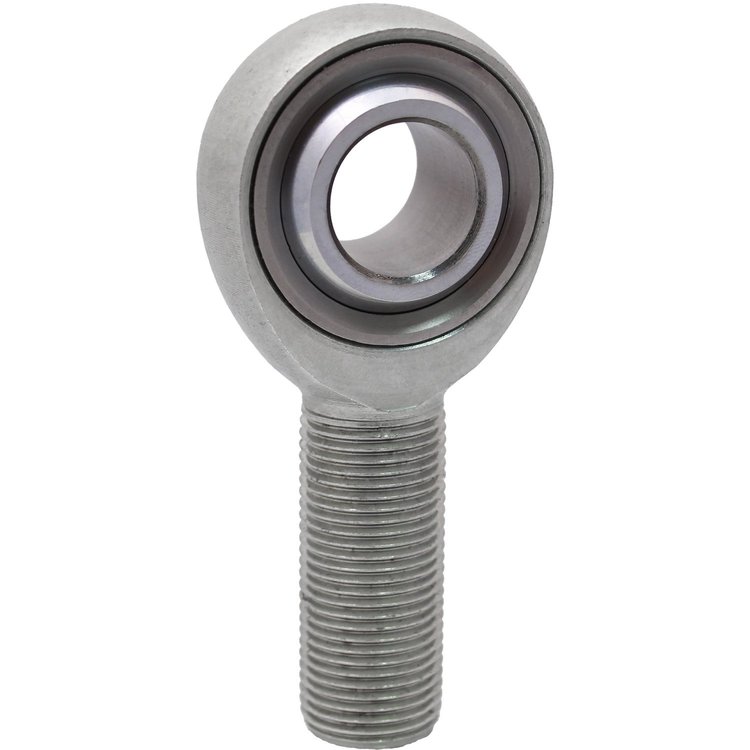

K Series Rod EndRod End (K) 3-Pc Carbon M-L 7/16-7/16
QA1 KML7 Features:
The traditional three-piece carbon steel rod end is defined as QA1's KM Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends. Grease fittings and stud configurations are available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Alloy Steel, Corrosion and Wear Resistant, , BODY, Carbon Steel (Alloy Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.56
Package Width1.12
Package Length2.68
Weight0.16 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.375 in (34.9 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)7/16-20 LH
QuantitySold individually
Rod End Centerline Length2.125 in (54 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)14 degrees
Rod End Head Diameter1.125 in (28.6 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction3-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)4,218
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentSemi Universal
Vendor Part NumberKML7
Package Qty1
Package TypeEA
