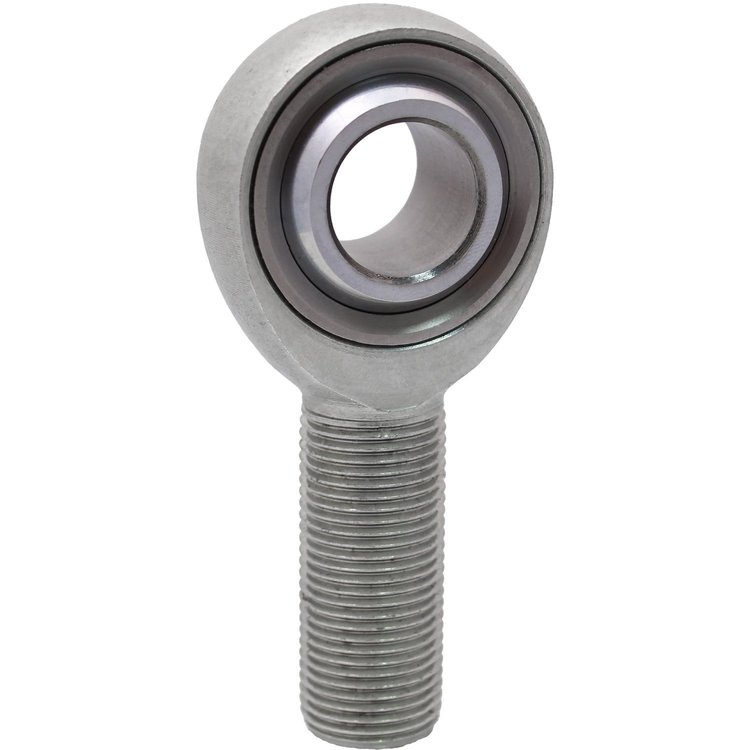

ROD END (K) 3-PC CARB M-R 3/4-7/8 TEF

Name: ROD END (K) 3-PC CARB M-R 3/4-7/8 TEF
Brand: QA1
SKU: 122-KMR12-14T
Price: 40.79 USD
Availability: InStock

^$40⁷⁹

Ships on 09/17/2026

Lowest Price Guarantee

Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1?s KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.` Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimen

Part TypeRod End

BrandQA1

Package Height0.87

Package Width2.0

Package Length4.37

Weight0.92 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.312 in (33.3 mm)

Rod End Head Bore Size0.75 in (19.1 mm)

Rod End Thread Size (In.)7/8-14 RH

QuantitySold individually

Rod End Centerline Length3.375 in (85.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)12 degrees

Rod End Head Diameter2 in (50.8 mm)

Rod End Ball Width0.875 in (22.2 mm)

Grease FittingNo

Rod End Construction3-piece

Heat-TreatedYes

Rod End Head Width0.875 in (22.2 mm)

Rod End Static Load Capacity (Lbs.)22,843

Rod End MaterialCarbon steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberKMR12-14T

Package Qty1

Package TypeEA
