Vehicle Info NeededQA1PART NUMBER: 122-LK12-FF04

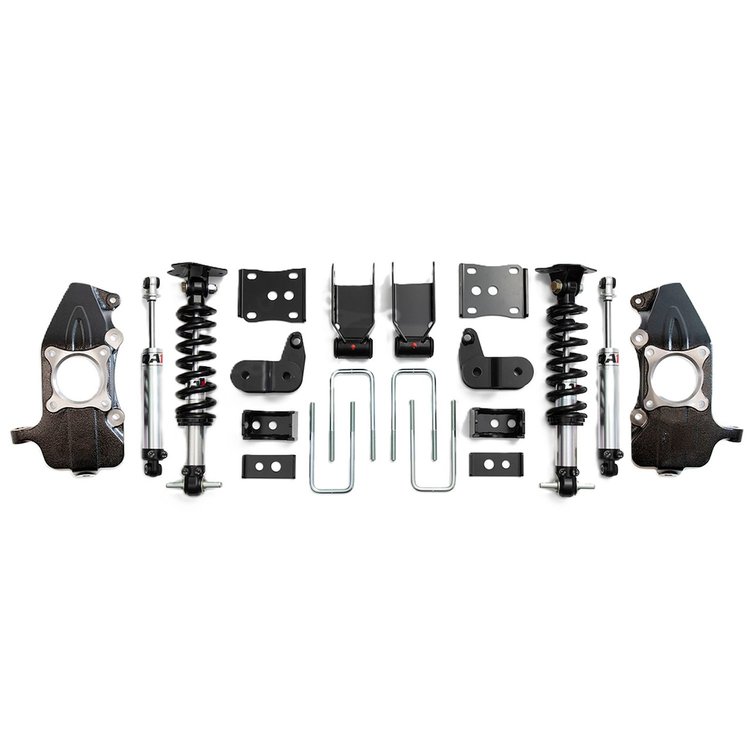

LK12-FF04 Lowering Kit with Spindles 3–5 in. Fits Select Ford F-150 4WD
$3,10195
Ships Tomorrow
Lowest Price GuaranteeFord Lowering Kits [Double-Adjustable Shocks]
- Lowering Kit
- Fits Select Ford F-150 4WD
- 3–5 in. Front Drop with Included Spindles
- 3.5–5.5 in. Rear Drop
- Front Coil-Overs and Rear Drop Kit
- Double Adjustable Shocks
The QA1 LK12-FF04 Lowering Kit delivers a 3–5 in. front drop using QA1 drop spindles and a 3.5–5.5 in. rear drop with bolt-in components. Engineered for performance and stance control, it combines a heavy-duty Pro Coil coil-over system with double adjustable shocks for independent tuning of compression and rebound. The system offers race-ready handling without sacrificing street comfort.
QA1 LK12-FF04 Features:
- Front Drop: 3–5 in. Using Included Drop Spindles
- Rear Drop: 3.5–5.5 in.; 4WD Models Drop Additional 1.5 in. from OE Block Removal
- Double Adjustable Shocks for Compression and Rebound
- Heavy-Duty Pro Coil System with Poly Bushings and 1 in. Chromoly T-Bar
- Powder-Coated Components for Corrosion Resistance
- Fully Bolt-In Installation — No Welding Required
- Front QA1 Pro Coil Coil-Over System
- QA1 Drop Spindles
- Rear Flip Kit
- Rear Shackles and Hangers
- All Required Mounting Hardware
- Installation Instructions
- Requires 22 in. Wheels or Larger When Using QA1 Spindles
- Compatible with OEM or Aftermarket Drop Spindles
- Not Compatible with PowerBoost Models or CCD Suspension
QA1 LK12-FF04 3–5 in. Lowering Kit Includes:
QA1 LK12-FF04 Notes:
Lower Your Truck to Improve Stance and Performance
QA1 Modern Truck Suspension Systems offer a range of drop options to upgrade your truck’s stance, ride quality, and performance. Experience the perfect balance of style and function with a QA1 rear drop kit.
Part TypeLowering Kit
Product LineQA1 Modern Truck Suspension Systems
BrandQA1
Package Height11.0
Package Width16.0
Package Length20.0
Weight121.0 PG
Part CategoryPerformance Parts
Traction Bar FinishBlack Powder Coated
QuantitySold as a kit
Mounting Hardware IncludedYes
Part FitmentDirect Fit
Traction Bar MaterialSteel
Vendor Part NumberLK12-FF04
Package Qty1
Package TypeEA
