Vehicle Info NeededQA1PART NUMBER: 122-MCFR12

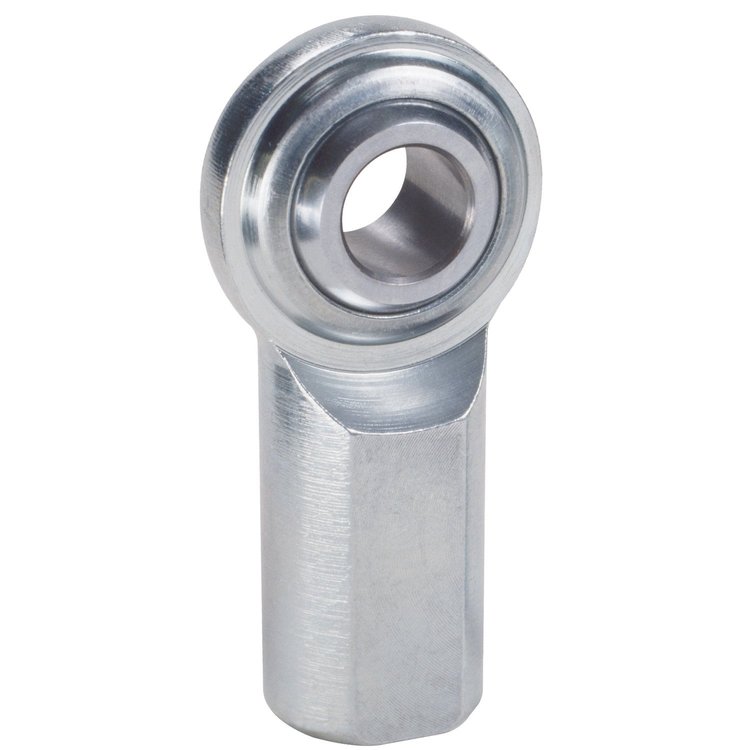

MCFR12 C Series Rod End, Rod End (C) 2-Pc Carbon F-R 12 mm-12 mm
$991
2 left in stock
Ships Today
Lowest Price GuaranteeC Series Rod EndRod End (C) 2-Pc Carbon F-R 12 mm-12 mm
QA1 MCFR12 Features:
For a traditional carbon steel two-piece female rod end, QA1 offers its MCF Carbon Steel Series metric rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available with left and right hand threads. Grease fittings and stud configurations are available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, , , Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1. For sizes 2 and 3, grease fittings are not available.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.62
Package Width1.12
Package Length2.37
Weight0.21 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Rod End Head Bore Size (Mm)12
Rod End Centerline Length (Mm)50
QuantitySold individually
Jam Nut IncludedNo
Rod End Head Diameter (Mm)30
Rod End Misalign Angle (Deg)27 degrees
Rod End Ball Width (Mm)16
Rod End Thread Size (Mm)12 x 1.75 RH
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Static Load Capacity (Lbs.)19,043
Rod End MaterialCarbon steel
Thread Length (Mm)24
Rod End StyleMetal to metal
Part FitmentSemi Universal
Rod End Head Width (Mm)16
Vendor Part NumberMCFR12
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
