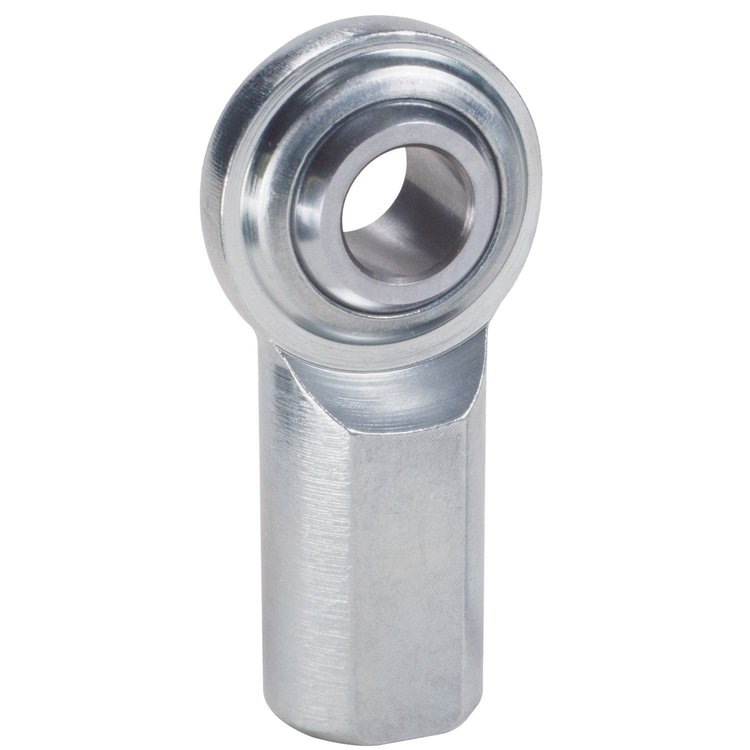

14 MM ROD END

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Metric C Series two piece aluminum rod end. Female mounting with 14mm bore and 14X2.0 6H right hand threads.
For a traditional carbon steel two-piece female rod end, QA1 offers its MCF Carbon Steel Series metric rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available with left and right hand threads. Grease fittings and stud configurations are available.` For a traditional carbon steel two-piece female rod end, QA1 offers its MCF Carbon Steel Series metric

Part TypeRod End

BrandQA1

Package Height1.0

Package Width1.5

Package Length3.3

Weight0.35 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Rod End Head Bore Size (Mm)14

Rod End Centerline Length (Mm)57

QuantitySold individually

Jam Nut IncludedNo

Rod End Head Diameter (Mm)34.75

Rod End Misalign Angle (Deg)30 degrees

Rod End Ball Width (Mm)19

Rod End Thread Size (Mm)14 x 2.00 RH

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Static Load Capacity (Lbs.)25,972

Rod End MaterialCarbon steel

Thread Length (Mm)27

Rod End StyleMetal to metal

Part FitmentUniversal

Rod End Head Width (Mm)19

Vendor Part NumberMCFR14

Package Qty1

Package TypeEA
