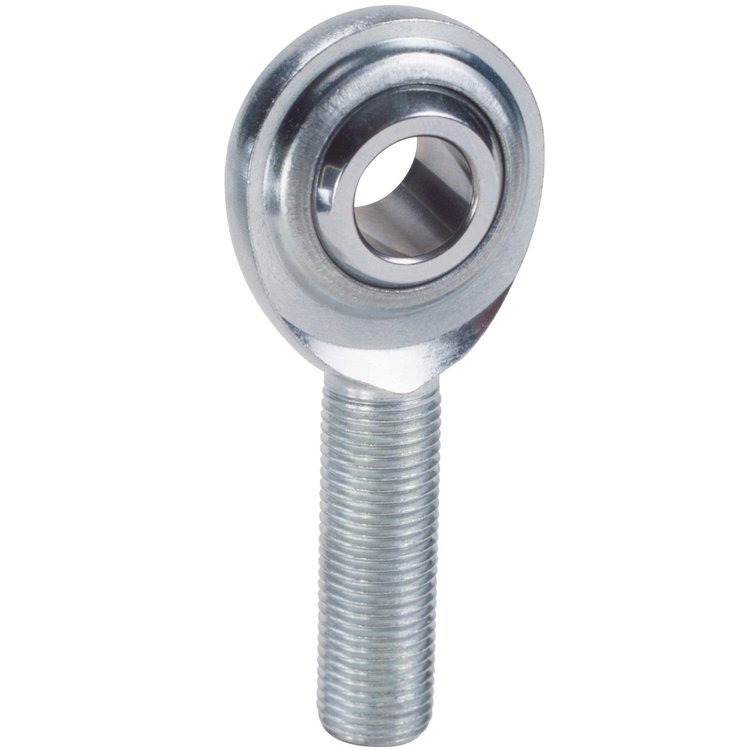

MCML8 C Series Rod End, Rod End (C) 2-Pc Carbon M-L 8 mm-8 mm
Product Discontinued
QA1PART NUMBER: 122-MCML8

MCML8 C Series Rod End, Rod End (C) 2-Pc Carbon M-L 8 mm-8 mm

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

C Series Rod End
  • Rod End (C) 2-Pc Carbon M-L 8 mm-8 mm

    QA1 MCML8 Features:

    For a traditional carbon steel metric two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metric metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads. Grease fittings and stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, , Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1. For sizes 2, 3, 3-4, 4, 4-5, 5 and 5-6, grease fittings are not available.

    • Rod ends for every motorsport need
    • Precise tolerances
    • Guaranteed strength, durability and quality champions demand
  • Part TypeRod End
    BrandQA1
    Package Height0.43
    Package Width0.87
    Package Length2.31
    Weight0.07 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishZinc plated
    Rod End Head Bore Size (Mm)8
    Rod End Centerline Length (Mm)42
    QuantitySold individually
    Jam Nut IncludedNo
    Rod End Head Diameter (Mm)22.25
    Rod End Misalign Angle (Deg)28 degrees
    Rod End Ball Width (Mm)12
    Rod End Thread Size (Mm)8 x 1.25 LH
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Static Load Capacity (Lbs.)10,024
    Rod End MaterialCarbon steel
    Thread Length (Mm)25
    Rod End StyleMetal to metal
    Part FitmentSemi Universal
    Rod End Head Width (Mm)12
    Vendor Part NumberMCML8
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Some parts are not legal for use in California or other states with similar laws / regulations
