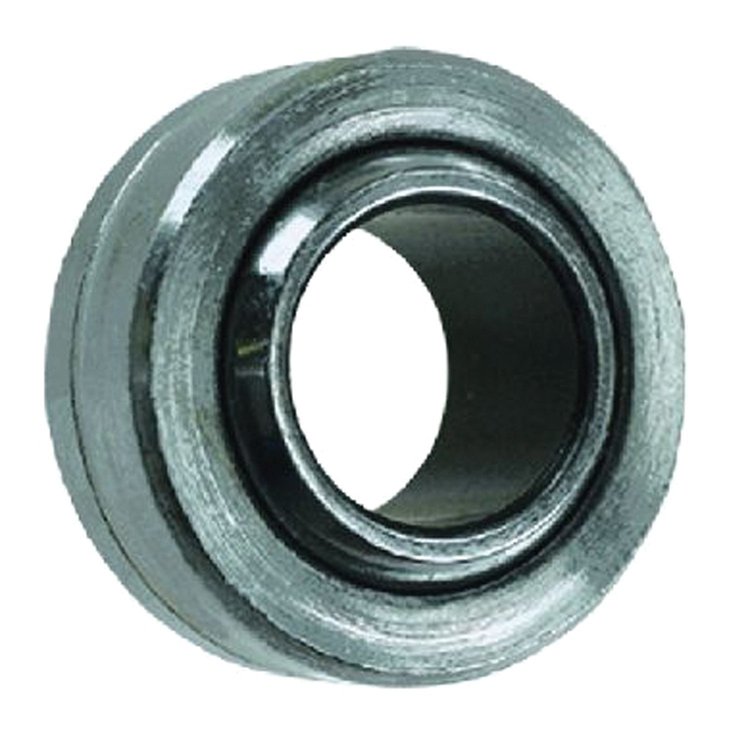

MIB Series BearingBearing (Mib) Steel Ht Cp/ Carbon 1/4
QA1 MIB4 Features:
QA1's MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter. An optional self-lubricating PTFE liner is also available with these spherical bearings (MIB-T Series). BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (MIB-T), PTFE, Self-Lubricating, , RACE, Low Carbon Steel, I.D. Protective Coated for Corrosion Resistance, Oil Coated, Mfr.'s Option - Heat Treated Stainless Steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.37
Package Width0.6
Package Length0.6
Weight0.02 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)5,620
Race Width0.281 in (7.1 mm)
Receiver Race Diameter0.609 in (15.5 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter0.25 in (6.35 mm)
Rod End Ball Diameter0.5 in (12.7 mm)
Chamfer Reference0.02 in (0.508 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)14.5 degrees
Inner Ball Width0.375 in (9.525 mm)
Vendor Part NumberMIB4
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
