Vehicle Info NeededQA1PART NUMBER: 122-MIB7

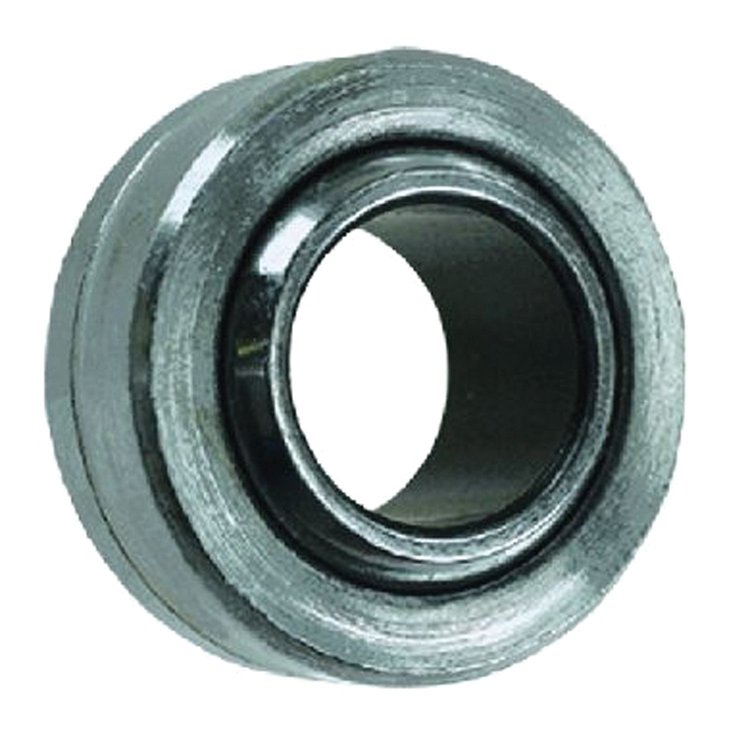

MIB7 MIB Series Bearing, Bearing (Mib) Steel Ht Cp/ Carbon 7/16
$1099
Ships on 09/21/2026
Lowest Price GuaranteeMIB Series BearingBearing (Mib) Steel Ht Cp/ Carbon 7/16
QA1 MIB7 Features:
QA1's MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter. An optional self-lubricating PTFE liner is also available with these spherical bearings (MIB-T Series). BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (MIB-T), PTFE, Self-Lubricating, , RACE, Low Carbon Steel, I.D. Protective Coated for Corrosion Resistance, Oil Coated, Mfr.'s Option - Heat Treated Stainless Steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.56
Package Width1.0
Package Length1.0
Weight0.08 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)14,194
Race Width0.437 in (11.1 mm)
Receiver Race Diameter1 in (25.4 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter0.438 in (11.125 mm)
Rod End Ball Diameter0.812 in (20.6 mm)
Chamfer Reference0.02 in (0.508 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)11 degrees
Inner Ball Width0.562 in (14.275 mm)
Vendor Part NumberMIB7
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
