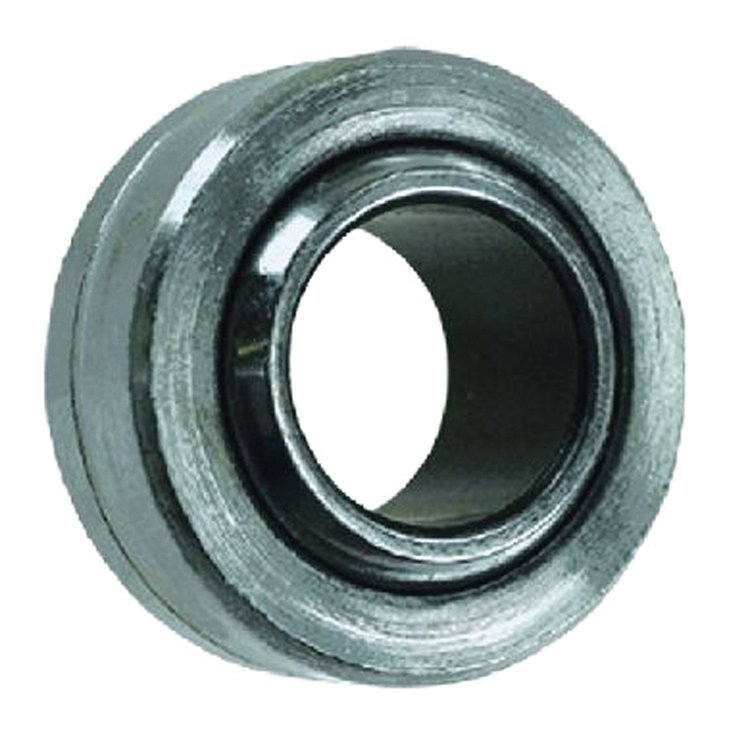

BEARING (MIB) STEEL HT CP/ CARB 7/16 TEF

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

QA1?s MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM bearing, extending the life due to the increased race width and diameter. An optional self-lubricating PTFE liner is also available with these spherical bearings (MIB-T Series).` QA1's MIB and MIB-T Low Carbon Steel Series spherical bearings offer more wear surface than a traditional COM b

Part TypeSuspension Bearing

BrandQA1

Package Height0.56

Package Width1.0

Package Length1.0

Weight0.08 PG

Part CategoryPerformance Parts

Ult. Static Radial Load (Lbs.)14,194

Race Width0.437 in (11.1 mm)

Receiver Race Diameter1 in (25.4 mm)

Rod End Bearing MaterialSteel

QuantitySold individually

Inner Ball Diameter0.438 in (11.125 mm)

Rod End Ball Diameter0.812 in (20.6 mm)

Chamfer Reference0.02 in (0.508 mm)

Rod End Misalign Angle (Deg)11 degrees

Inner Ball Width0.562 in (14.275 mm)

Vendor Part NumberMIB7T

Package Qty1

Package TypeEA
