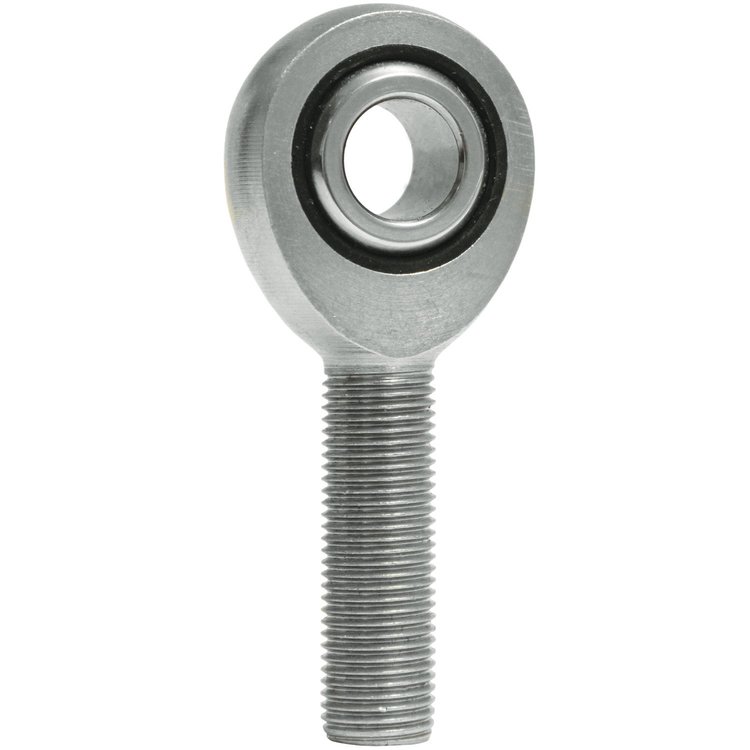

NML6 N Series Rod End, Rod End (N) Econ Carbon M-L 3/8-3/8
InfoVehicle Info Needed
QA1PART NUMBER: 122-NML6

NML6 N Series Rod End, Rod End (N) Econ Carbon M-L 3/8-3/8

$499
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

N Series Rod End
  • Rod End (N) Econ Carbon M-L 3/8-3/8

    QA1 NML6 Features:

    QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads. This series features a molded race compound designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The race is made from reinforced nylon 12 with PFTE, and the body is carbon steel that is protective coated. Notes: Stud configurations are available.

    • Rod ends for every motorsport need
    • Precise tolerances
    • Guaranteed strength, durability and quality champions demand
  • Part TypeRod End
    BrandQA1
    Package Height0.5
    Package Width1.0
    Package Length2.43
    Weight0.1 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishZinc plated
    Thread Length1.25 in (31.8 mm)
    Rod End Head Bore Size0.375 in (9.5 mm)
    Rod End Thread Size (In.)3/8-24 LH
    QuantitySold individually
    Rod End Centerline Length1.938 in (49.2 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)12 degrees
    Rod End Head Diameter1 in (25.4 mm)
    Rod End Ball Width0.5 in (12.7 mm)
    Grease FittingNo
    Rod End Construction1-piece
    Heat-TreatedYes
    Rod End Head Width0.5 in (12.7 mm)
    Rod End Static Load Capacity (Lbs.)4,210
    Rod End MaterialCarbon steel
    Rod End StyleNylon lined
    Part FitmentSemi Universal
    Vendor Part NumberNML6
    Package Qty1
    Package TypeEA
