Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

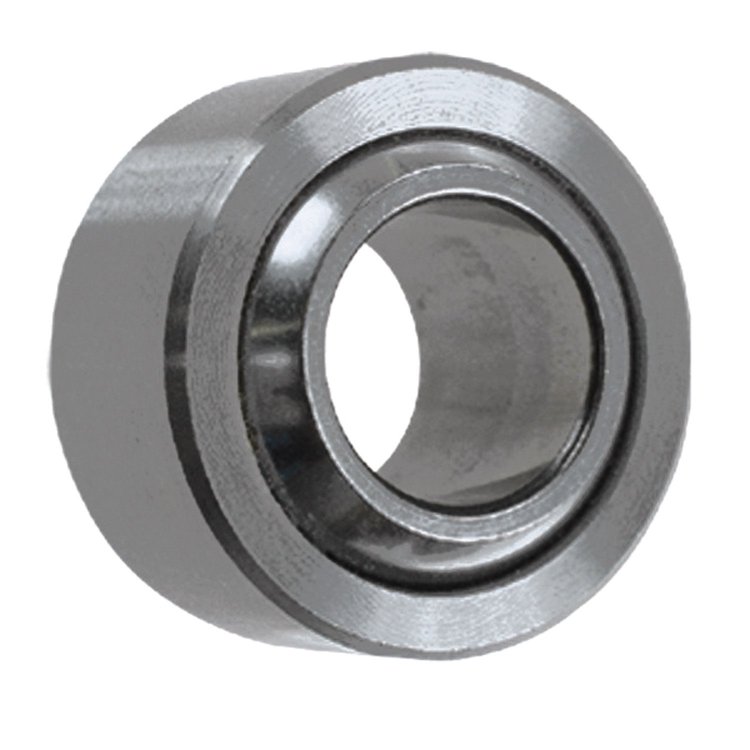

NPB Series BearingBearing (Npb) Narrow Ss Ht/ Ss Ht 3/16 PTFE
QA1 NPB3T Features:
For a precision spherical bearing, QA1's NPB-T Narrow Stainless Steel Series spherical bearings are the perfect selection. Each bearing is made from stainless steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is made from heat treated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.28
Package Width0.56
Package Length0.56
Weight0.02 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)3,975
Race Width0.218 in (5.5 mm)
Receiver Race Diameter0.563 in (14.3 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.19 in (4.826 mm)
Rod End Ball Diameter0.406 in (10.3 mm)
Chamfer Reference0.015 in (0.381 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)10 degrees
Inner Ball Width0.281 in (7.137 mm)
Vendor Part NumberNPB3T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
