Vehicle Info NeededQA1PART NUMBER: 122-NPB6T

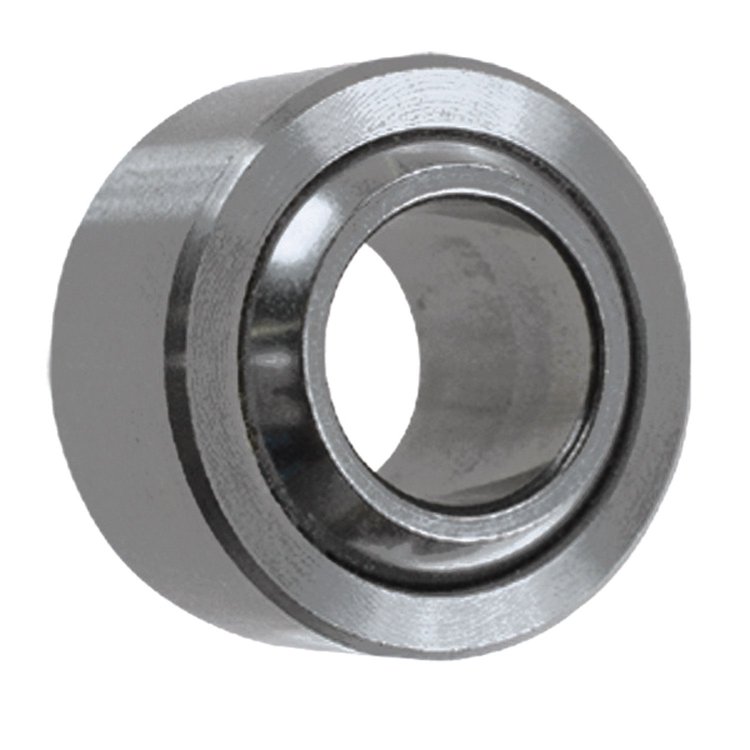

NPB6T NPB Series Bearing, Bearing (Npb) Narrow Ss Ht/ Ss Ht 3/8 PTFE
$1799
More than 10 available
Ships Today
Lowest Price GuaranteeNPB Series BearingBearing (Npb) Narrow Ss Ht/ Ss Ht 3/8 PTFE
QA1 NPB6T Features:
For a precision spherical bearing, QA1's NPB-T Narrow Stainless Steel Series spherical bearings are the perfect selection. Each bearing is made from stainless steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is made from heat treated stainless steel.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height0.4
Package Width0.81
Package Length0.81
Weight0.04 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)10,540
Race Width0.312 in (7.9 mm)
Receiver Race Diameter0.813 in (20.7 mm)
Rod End Bearing MaterialStainless steel
QuantitySold individually
Inner Ball Diameter0.375 in (9.525 mm)
Rod End Ball Diameter0.625 in (15.9 mm)
Chamfer Reference0.032 in (0.813 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)9 degrees
Inner Ball Width0.406 in (10.312 mm)
Vendor Part NumberNPB6T
Package Qty1
Package TypeEA
