Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

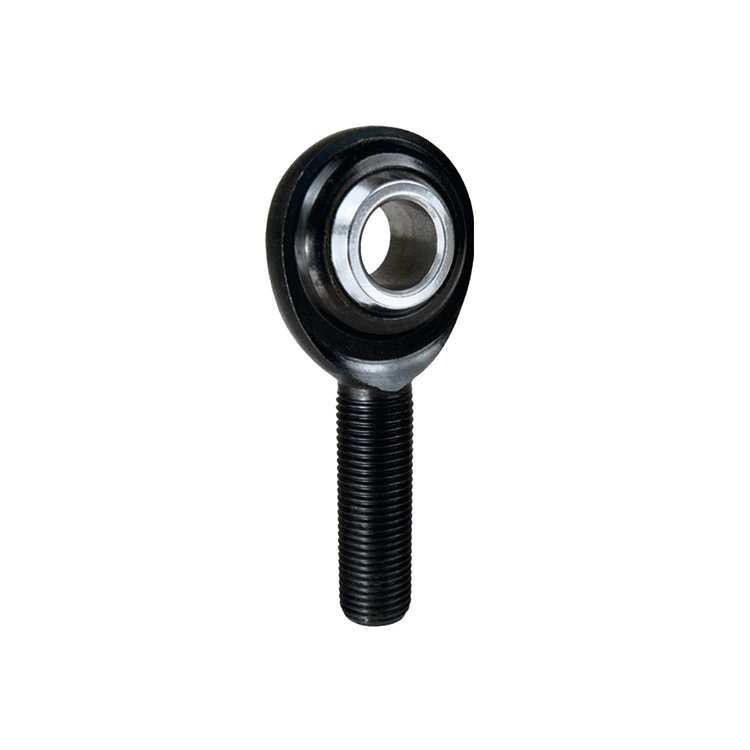

PCM Series Rod EndsLeft Hand PTFE Lined
- PCM Series Rod End - PTFE Lined
- Hole I.D.: 5/8''
- Thread Size: 3/4''-16 LH
- Misalign Angle: 26°
- Static Load: 23,000 lbs.
Part TypeRod End
BrandQA1
Package Height0.3
Package Width3.2
Package Length6.5
Weight0.48 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)3/4-16 LH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)26 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)23,000
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberPCML10-12T
Package Qty1
Package TypeEA
