Vehicle Info NeededQA1PART NUMBER: 122-PCML10T

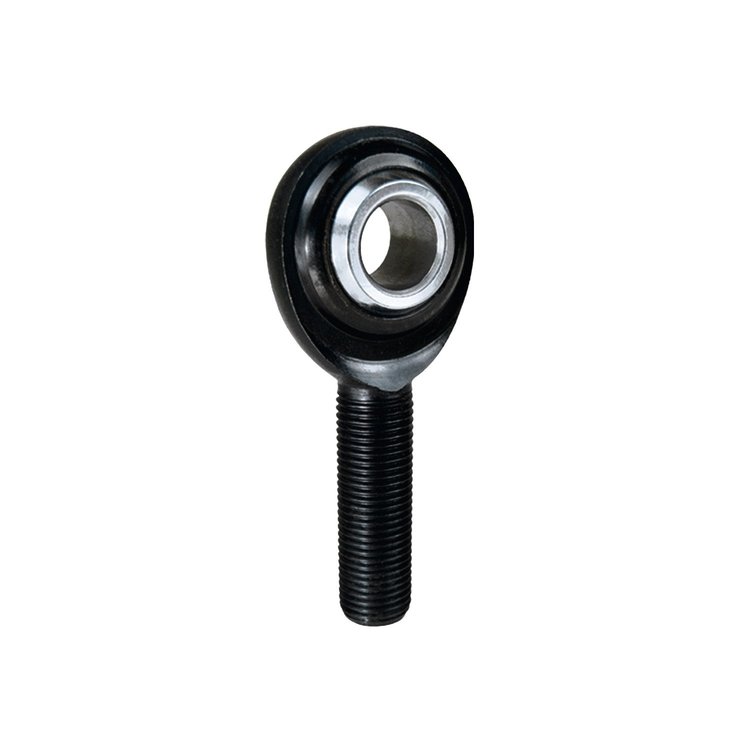

PCM Series Rod End - PTFE Lined Hole I.D.: 5/8"
$1399
2 left in stock
Ships Today
Lowest Price Guarantee
PCM Series Rod EndsLeft Hand PTFE Lined
- PCM Series Rod End - PTFE Lined
- Hole I.D.: 5/8''
- Thread Size: 5/8''-18 LH
- Misalign Angle: 26°
- Static Load: 15,200 lbs.
Part TypeRod End
BrandQA1
Package Height1.0
Package Width2.0
Package Length4.0
Weight0.35 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)26 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)15,200
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberPCML10T
Package Qty1
Package TypeEA
