Vehicle Info NeededQA1PART NUMBER: 122-PCML12
PCM Series Rod End Hole I.D.: 3/4"
$1399
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteePCM Series Rod EndsLeft Hand

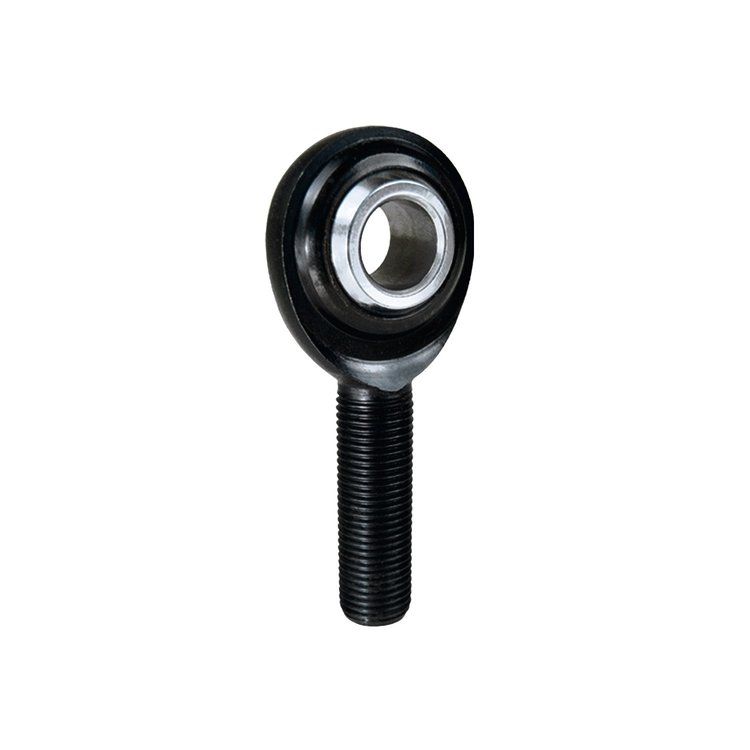

- PCM Series Rod End
- Hole I.D.: 3/4''
- Thread Size: 3/4''-16 LH
- Misalign Angle: 24°
- Static Load: 25,000 lbs.
PCM Series Rod Ends
For the ultimate in strength and quality in a two-piece design, QA1 offers its PCM and PCM-T Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal to metal or PTFE® lined. Available in common sizes, with Left and Right hand thread options.
Show More
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Body - Chromoly Steel
- Heat Treated
- Black Oxide Coated
- PTFE® Lined ("T")
Part TypeRod End
Product LineQA1 PCM/PCM-T Series Male Rod Ends
BrandQA1
Package Height2.0
Package Width2.0
Package Length4.0
Weight0.55 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 LH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)24 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)25,000
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberPCML12
Package Qty1
Package TypeEA
