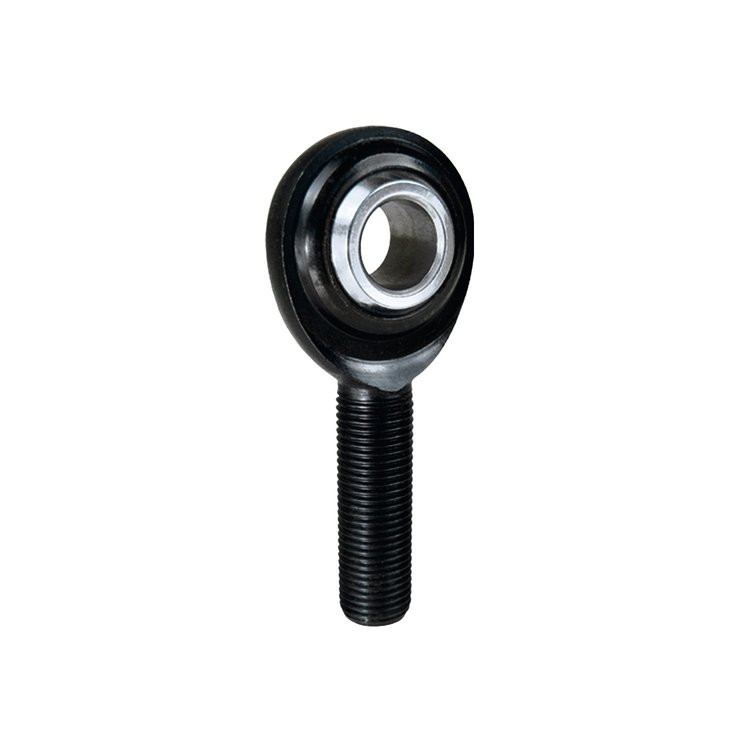

Vehicle Info NeededQA1PART NUMBER: 122-PCML8-10
PCM Series Rod End Hole I.D.: 1/2"
$1099
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteePCM Series Rod EndsLeft Hand
- PCM Series Rod End
- Hole I.D.: 1/2''
- Thread Size: 5/8''-18 LH
- Misalign Angle: 20°
- Static Load: 19,300 lbs.
Part TypeRod End
BrandQA1
Package Height2.7
Package Width3.2
Package Length5.5
Weight0.45 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)19,300
Rod End MaterialChromoly
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberPCML8-10
Package Qty1
Package TypeEA
