Vehicle Info NeededQA1PART NUMBER: 122-PCML8-10T

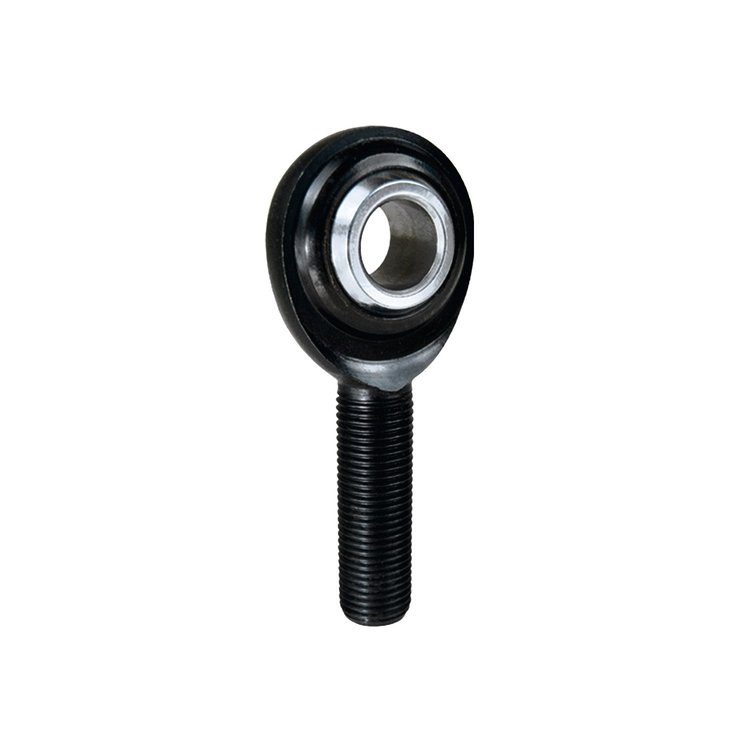

PCM Series Rod End - PTFE Lined Hole I.D.: 1/2"
$1799
3 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteePCM Series Rod EndsLeft Hand PTFE Lined
- PCM Series Rod End - PTFE Lined
- Hole I.D.: 1/2''
- Thread Size: 5/8''-18 LH
- Misalign Angle: 20°
- Static Load: 17,650 lbs.
Part TypeRod End
BrandQA1
Package Height2.7
Package Width3.3
Package Length3.4
Weight0.25 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)17,650
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberPCML8-10T
Package Qty1
Package TypeEA
