QA1PART NUMBER: 122-PCMR10-12T

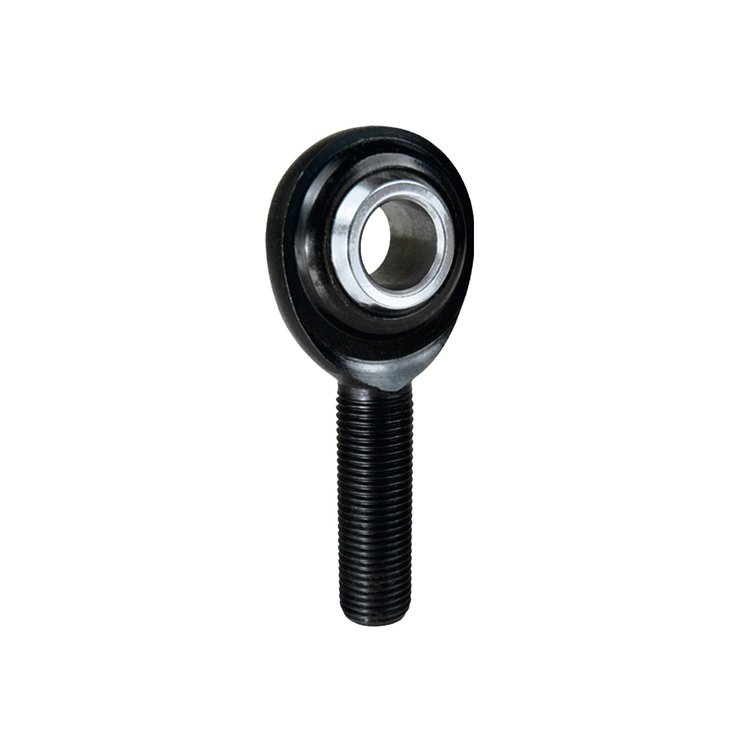

PCM Series Rod End - PTFE Lined Hole I.D.: 5/8"

Name: PCM Series Rod End - PTFE Lined Hole I.D.: 5/8"
Brand: QA1
SKU: 122-PCMR10-12T
Price: 22.99 USD
Availability: InStock

^$22⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

PCM Series Rod Ends
Right Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height1.0

Package Width3.0

Package Length5.0

Weight0.5 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishBlack oxide

Thread Length1.75 in (44.5 mm)

Rod End Head Bore Size0.625 in (15.9 mm)

Rod End Thread Size (In.)3/4-16 RH

QuantitySold individually

Rod End Centerline Length2.875 in (73 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)26 degrees

Rod End Head Diameter1.75 in (44.5 mm)

Rod End Ball Width0.75 in (19.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.75 in (19.1 mm)

Rod End Static Load Capacity (Lbs.)23,000

Rod End MaterialChromoly

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberPCMR10-12T

Package Qty1

Package TypeEA
