QA1PART NUMBER: 122-PCMR12

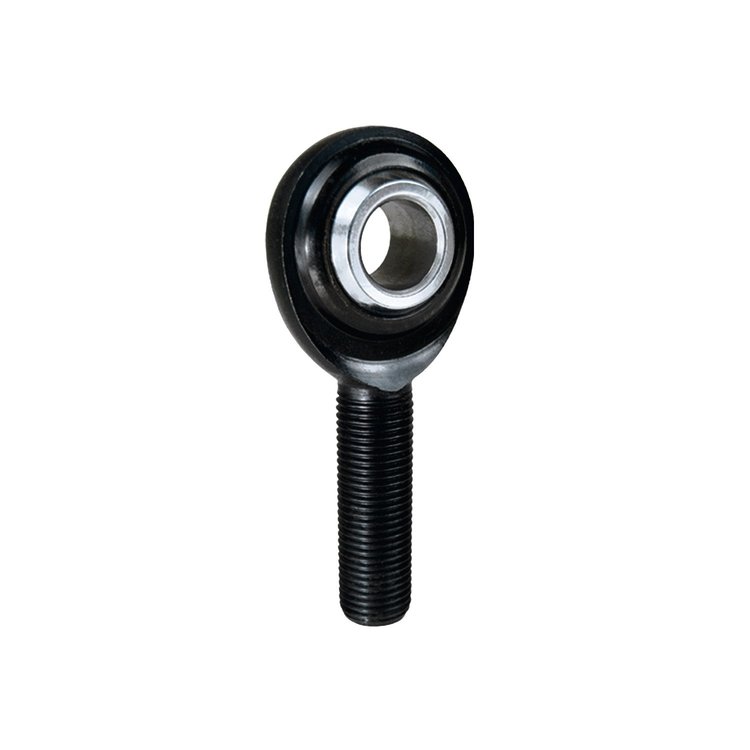

PCM Series Rod End Hole I.D.: 3/4"

Name: PCM Series Rod End Hole I.D.: 3/4"
Brand: QA1
SKU: 122-PCMR12
Price: 13.99 USD
Availability: InStock

^$13⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

PCM Series Rod Ends

Right Hand

Part TypeRod End

BrandQA1

Package Height0.7

Package Width2.2

Package Length4.0

Weight0.55 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishBlack oxide

Thread Length1.75 in (44.5 mm)

Rod End Head Bore Size0.75 in (19.1 mm)

Rod End Thread Size (In.)3/4-16 RH

QuantitySold individually

Rod End Centerline Length2.875 in (73 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)24 degrees

Rod End Head Diameter1.75 in (44.5 mm)

Rod End Ball Width0.875 in (22.2 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.875 in (22.2 mm)

Rod End Static Load Capacity (Lbs.)25,000

Rod End MaterialChromoly

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberPCMR12

Package Qty1

Package TypeEA
