QA1PART NUMBER: 122-PCYML10-12T

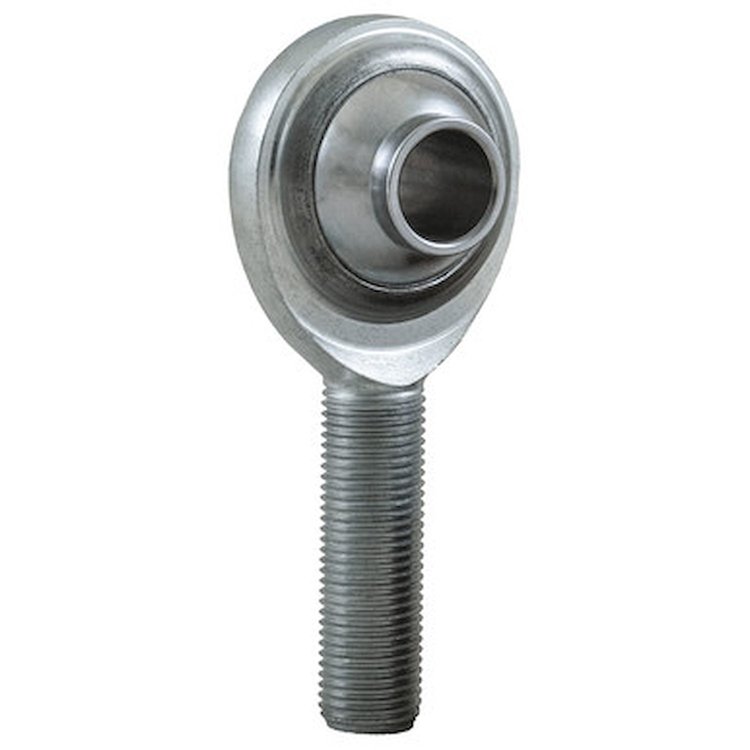

PCYM-T Series Rod End Hole I.D.: 5/8"

Name: PCYM-T Series Rod End Hole I.D.: 5/8"
Brand: QA1
SKU: 122-PCYML10-12T
Price: 24.99 USD
Availability: InStock

^$24⁹⁹

1 left in stock

Ships Today

Lowest Price Guarantee

PCYM-T Series Rod Ends

Left Hand

Hole I.D.: 5/8''
Thread Size: 3/4"-16 LH
QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series.` QA1 off

Part TypeRod End

BrandQA1

Package Height0.7

Package Width2.4

Package Length4.7

Weight0.69 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishBlack oxide

Thread Length2 in (50.8 mm)

Rod End Head Bore Size0.625 in (15.9 mm)

Rod End Thread Size (In.)3/4-16 LH

QuantitySold individually

Rod End Centerline Length3.375 in (85.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)64 degrees

Rod End Head Diameter2 in (50.8 mm)

Rod End Ball Width1.375 in (34.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width1.375 in (34.9 mm)

Rod End Static Load Capacity (Lbs.)30,290

Rod End MaterialChromoly

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberPCYML10-12T

Package Qty1

Package TypeEA
