Vehicle Info NeededQA1PART NUMBER: 122-PCYML8T

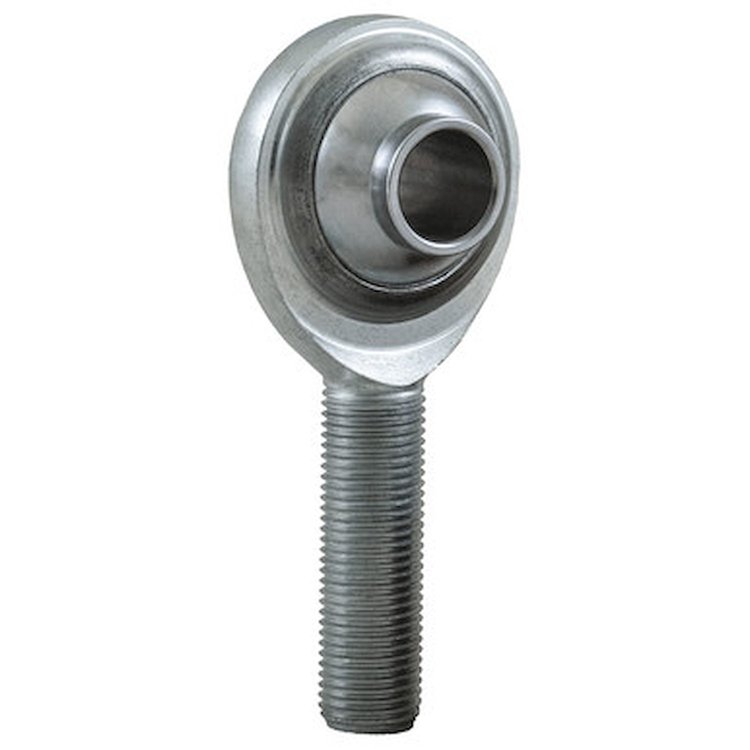

PCYM-T Series Rod End Hole I.D.: .500 in.
$1399
2 left in stock
Ships Today
Lowest Price GuaranteePCYM-T Series Rod EndsLeft Hand
PCYM-T Series Rod EndHole I.D.: .500 in. Thread Size: 1/2-20 LH
Features:
- Chromoly Steel
- Male, Left-Hand Thread
- PTFE Lined
- For Applications Requiring High Misalignment
- Bore Size: .500 in.
- Thread Size: 1/2-20
- Black Oxide Coated
Part TypeRod End
BrandQA1
Package Height2.2
Package Width2.7
Package Length5.1
Weight0.34 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)65 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width1.25 in (31.8 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width1.25 in (31.8 mm)
Rod End Static Load Capacity (Lbs.)16,240
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberPCYML8T
Package Qty1
Package TypeEA
