Vehicle Info NeededQA1PART NUMBER: 122-PCYMR10-12T

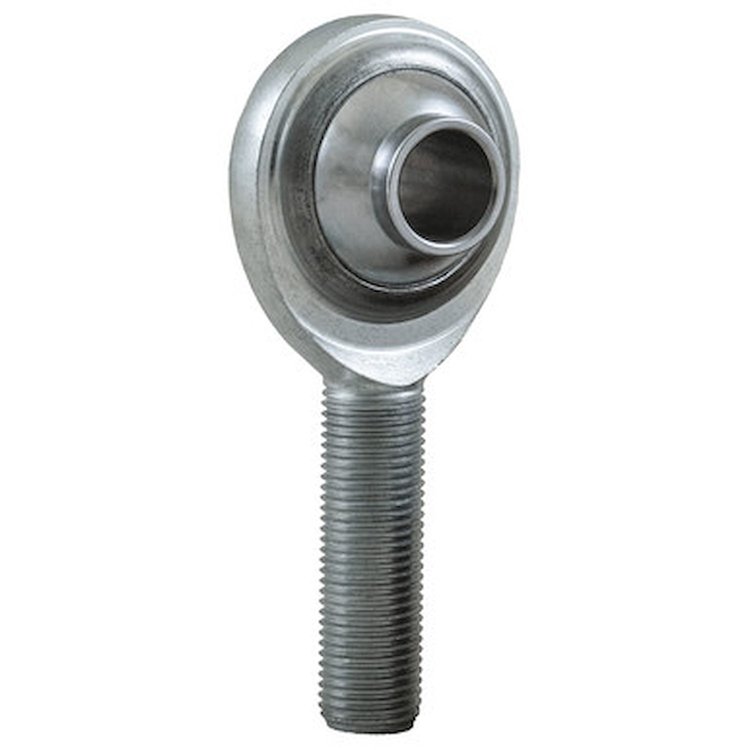

PCYM-T Series High Misalignment, PTFE Lined, Chromoly Steel Rod End 5/8 in. x 3/4 in.-16
$2499
1 left in stock
Ships Tomorrow
Lowest Price GuaranteePCYM-T Series Rod EndsRight Hand
PCYM-T Series High Misalignment Chromoly Steel Rod EndBore Size: 5/8 in. Thread Size: 3/4 in.-16 Thread: Right Hand High-Misalignment PTFE Lined Black-Oxide Coated Sold Individually
QA1 PCYMR10-12T PCYM-T Series High Misalignment, PTFE Lined, Chromoly Steel Rod End Features:
- 2-piece high misalignment
- 52100 bearing steel ball
- Hard chrome-plated, and precision ground
- Chromoly steel, heat-treated, black oxide coated body
PCYM-T Series Rod Ends
For the ultimate in strength and quality in a two-piece design, QA1 offers its PCYM-T Chromoly Steel Series rod ends. These black oxide-coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE® lined. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Available in standard sizes, with Left and Right-hand thread options.
Part TypeRod End
Product LineQA1 PCYM-T Series 2-Piece Rod Ends
BrandQA1
Package Height0.3
Package Width2.5
Package Length4.9
Weight0.6 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length2 in (50.8 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Rod End Centerline Length3.375 in (85.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)64 degrees
Rod End Head Diameter2 in (50.8 mm)
Rod End Ball Width1.375 in (34.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width1.375 in (34.9 mm)
Rod End Static Load Capacity (Lbs.)30,290
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberPCYMR10-12T
Package Qty1
Package TypeEA
