Vehicle Info NeededQA1PART NUMBER: 122-PCYMR10T

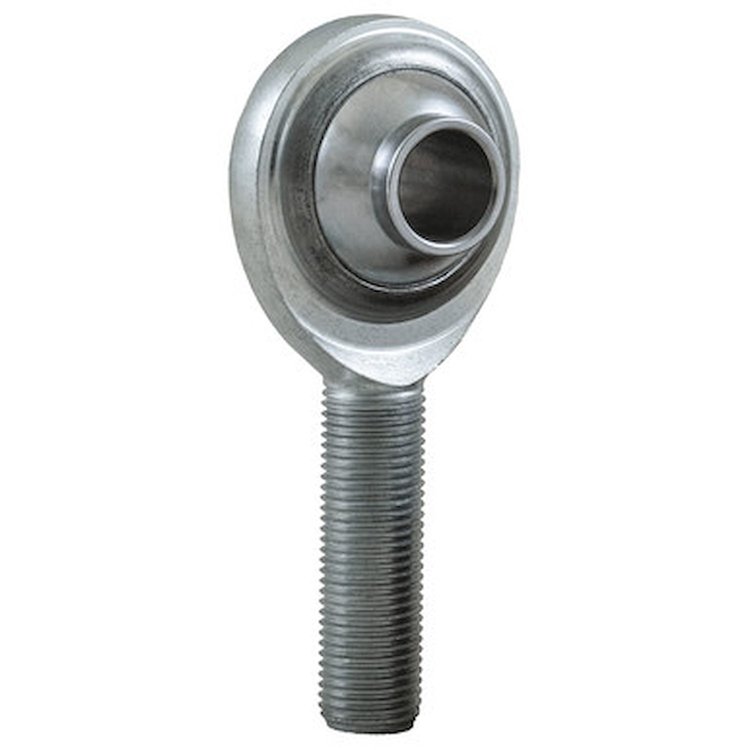

PCYMR10T PCY Series Rod End, Rod End (Pc) 2-Pc Alloy Hi-Misalign M-R 5/8-5/8 PTFE
$2099
More than 10 available
Ships on Sep 14, 2026
Lowest Price GuaranteePCY Series Rod EndRod End (Pc) 2-Pc Alloy Hi-Misalign M-R 5/8-5/8 PTFE
QA1 PCYMR10T Features:
QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These zinc coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The body is chromoly steel that has been heat treated and zinc coated. There is also a self-lubricating PTFE liner.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height1.5
Package Width2.8
Package Length5.0
Weight0.53 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 RH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)64 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width1.375 in (34.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width1.375 in (34.9 mm)
Rod End Static Load Capacity (Lbs.)21,219
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentSemi Universal
Vendor Part NumberPCYMR10T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
