Vehicle Info NeededQA1PART NUMBER: 122-PCYMR8T

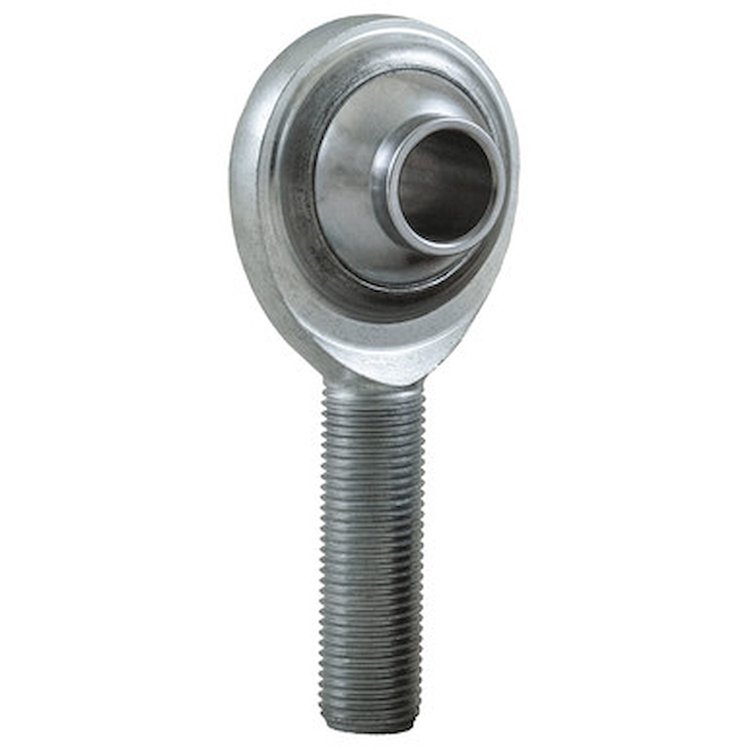

PCYM-T Series Rod End Hole I.D.: 1/2"
$1399
2 left in stock
Ships Today
Lowest Price GuaranteePCYM-T Series Rod EndsRight Hand
- PCYM-T Series Rod End
- Hole I.D.: 1/2''
- Thread Size: 1/2"-20 RH
- QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series.` QA1 off
PCYM-T Series Rod Ends
For the ultimate in strength and quality in a two-piece design, QA1 offers its PCYM-T Chromoly Steel Series rod ends. These black oxide-coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE® lined. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Available in standard sizes, with Left and Right-hand thread options.
Part TypeRod End
Product LineQA1 PCYM-T Series 2-Piece Rod Ends
BrandQA1
Package Height1.1
Package Width1.25
Package Length3.75
Weight0.3 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishBlack oxide
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 RH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)65 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width1.25 in (31.8 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width1.25 in (31.8 mm)
Rod End Static Load Capacity (Lbs.)16,240
Rod End MaterialChromoly
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberPCYMR8T
Package Qty1
Package TypeEA
