![MOD-Series Rear Coil-Over System 1997-2013 Chevy Corvette C5/C6, 4-Way Adjustable [Spring Rate: 700 lbs./in.]](https://www.jegs.com/images/mini_750/100/122/122-rck52475.jpg)
QA1PART NUMBER: 122-RCK52475

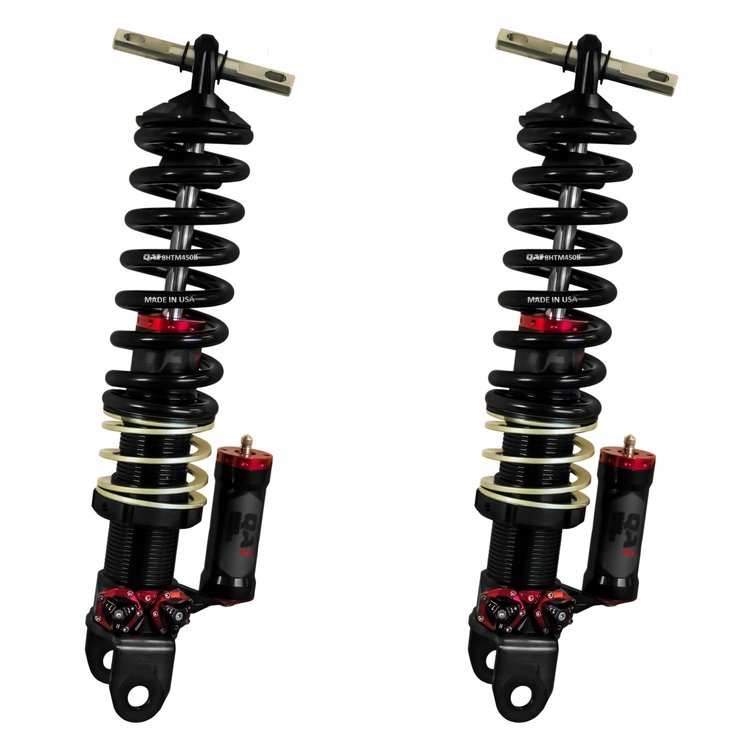

MOD-Series Rear Coil-Over System 1997-2013 Chevy Corvette C5/C6, 4-Way Adjustable [Spring Rate: 700 lbs./in.]
$2,21395
1997-2013 Corvette C5/C6
MOD-Series Rear Coil-Over System1997-2013 Chevy Corvette C5/C6 4-Way Adjustable Spring Rate: 700 lbs./in. Ride Height: 1-2 in. Lowered Pair
RCK52475 Features:
- The firm spring rate is ideal for pro-touring and track-oriented applications, meeting the demands of requiring more aggressive cornering and handling responsiveness
- Provides suspension tunability and ride height adjustment
- Utilizes modular valve packs that allow valve change without removing the shocks from the vehicle
- Full independent control of compression and rebound settings
- Low-speed bleed adjustability to refine vehicle weight transfer and low-speed valving characteristics
- 2.250 in. coil spring inner diameter
- (1) Nitrogen-charged piggyback canister on each shock for ideal fitment within the Corvette C5/C6 chassis
- Installs into the factory mounting locations
Notes:
- Does not require the use of a toe link relocation kit
- Vehicles with electronic ride control require Real-Time Damping simulators
- The lowering height varies by vehicle submodel:
- Base model: 1-2 in. lowered
- Z06 model: .500-1.500 in. lowered
Part TypeShock Absorber and Coil Spring Assembly
BrandQA1
Package Height9.13
Package Width14.13
Package Length29.13
Weight21.9 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Coil-Over Springs IncludedYes
Gas ChargedYes
Bushing ColorBlack
Spring Rate700 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Suspension Height Adjustment (In.)1-2 in. Lowered
Spring FinishBlack powdercoated
QuantitySold as set of 2
Lower MountClevis
Shock Body FinishBlack anodized
Coil-Over Kit PositionRear
Upper MountTie bar
Shock Body MaterialAluminum
Shocks IncludedYes
Coil-Over Shock Type4-Way Adjustable
Part FitmentDirect Fit
Package Qty1
Package TypeEA
